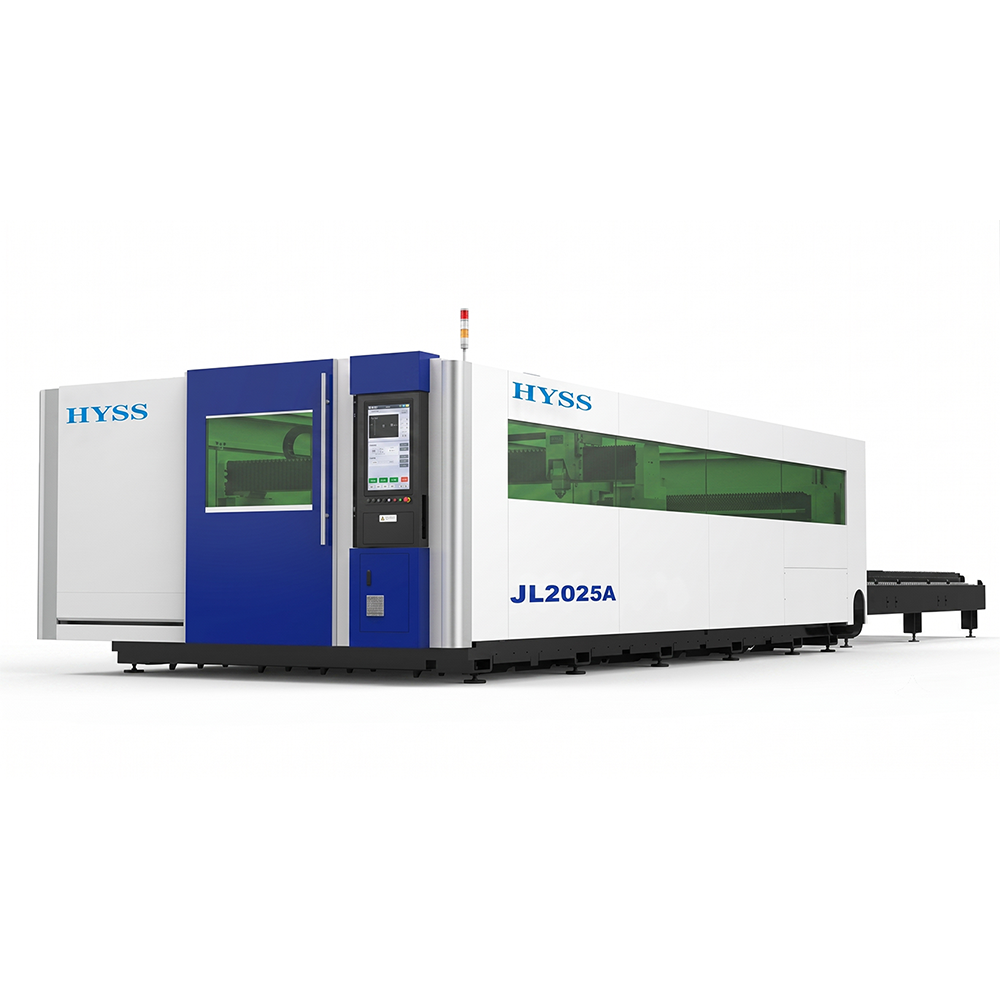

HIGH POWER LIFTING PLATFORM LASER CUTTING MACHINE

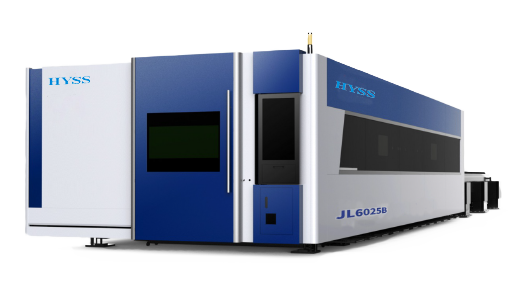

MEDIUM POWER PARALLEL EXCHANGE TABLE LASER CUTTING MACHINE
OPEN INTERCHANGEABLE PLATFORM LASER CUTTING MACHINE

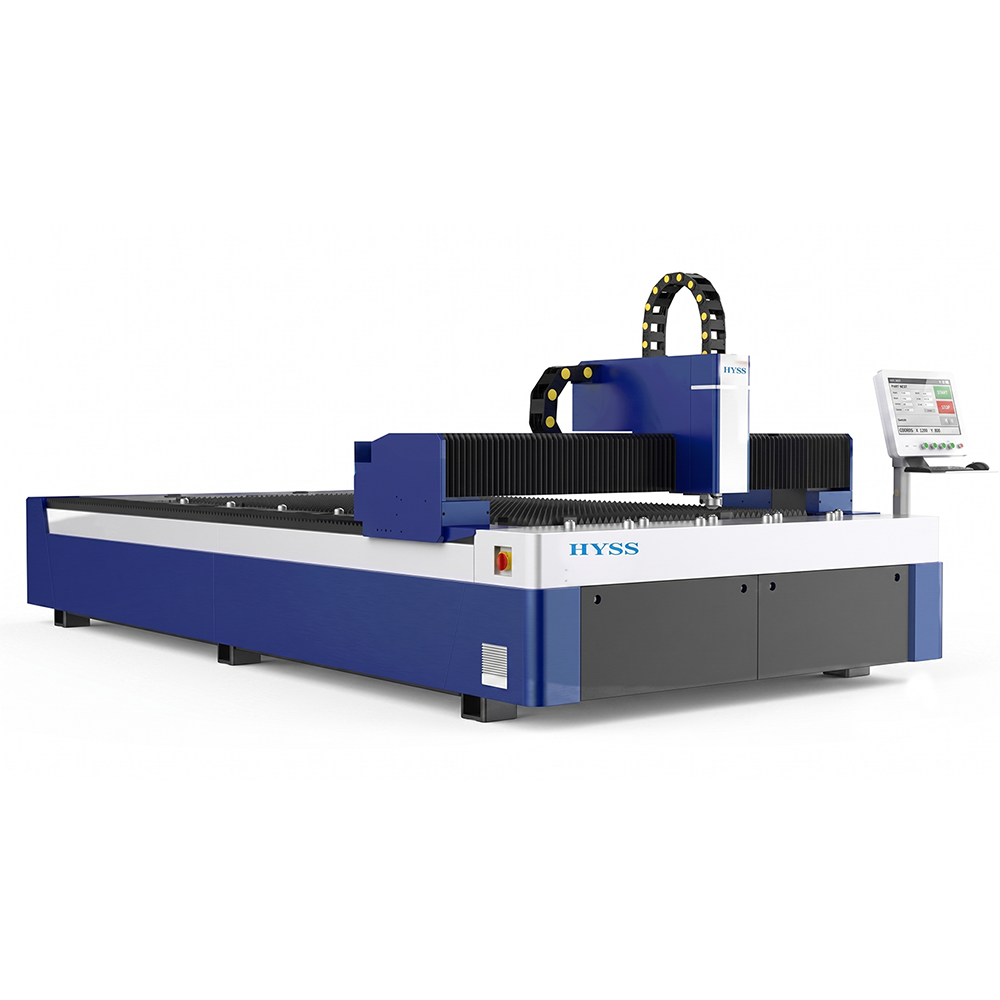

OPEN PLATFORM LASER CUTTING MACHINE

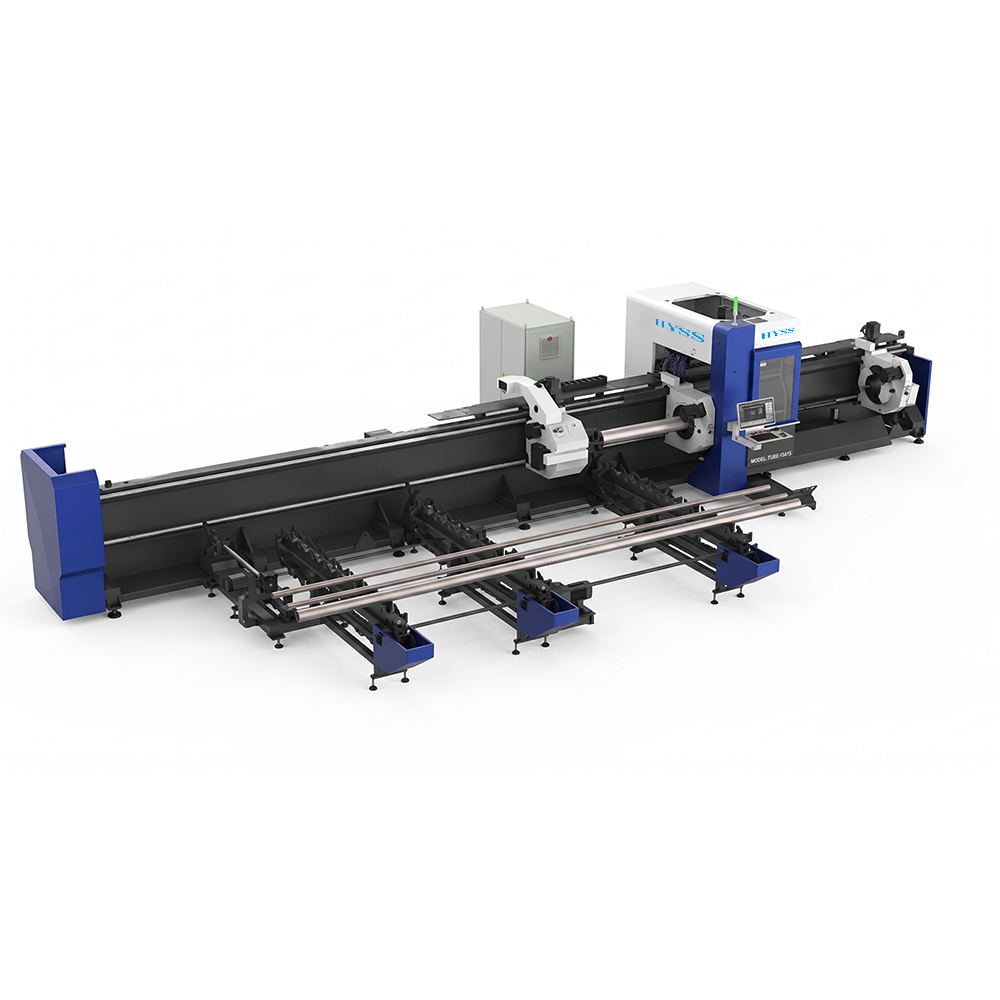

AUTOMATIC/SEMI-AUTOMATIC LASER PIPE CUTTING MACHINE

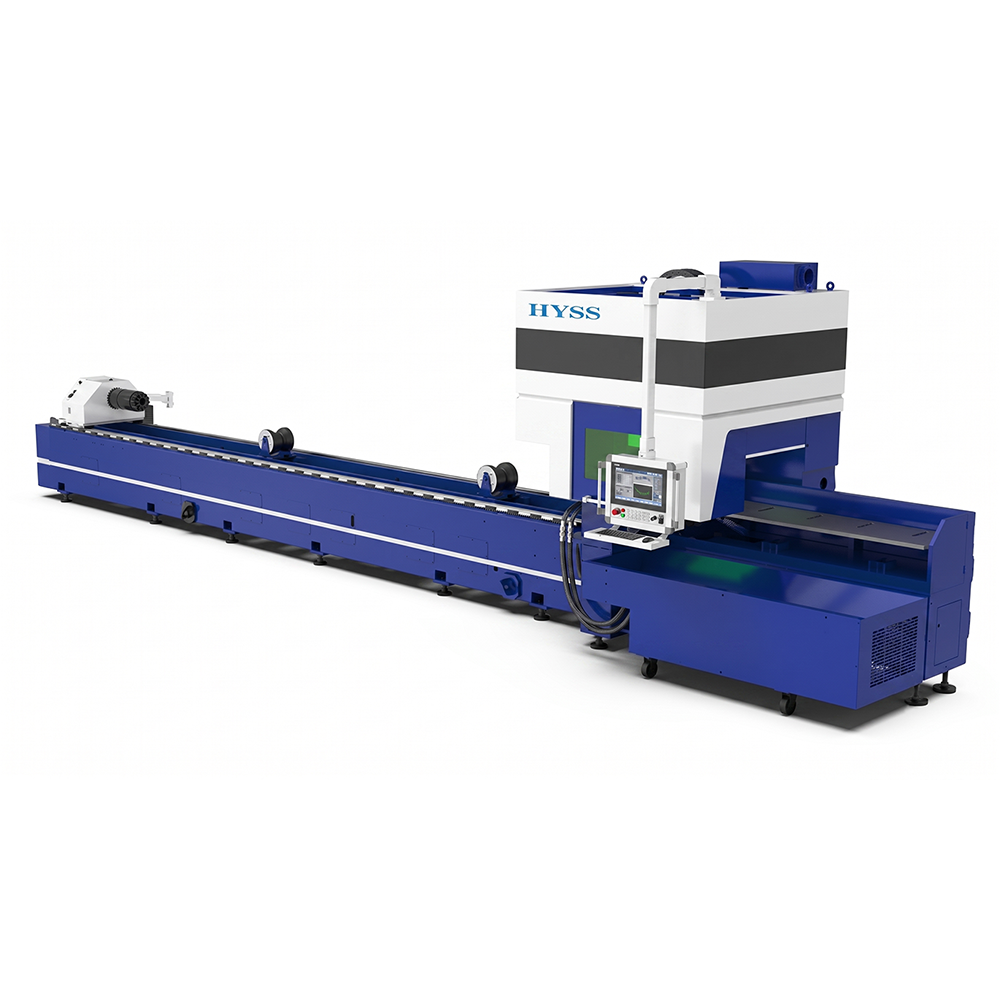

AUTOMATIC FIBER LASER PIPE CUTTING MACHINE
INTEGRATED FIBER LASER CUTTING MACHINE FOR SEMI ENCLOSED PIPES

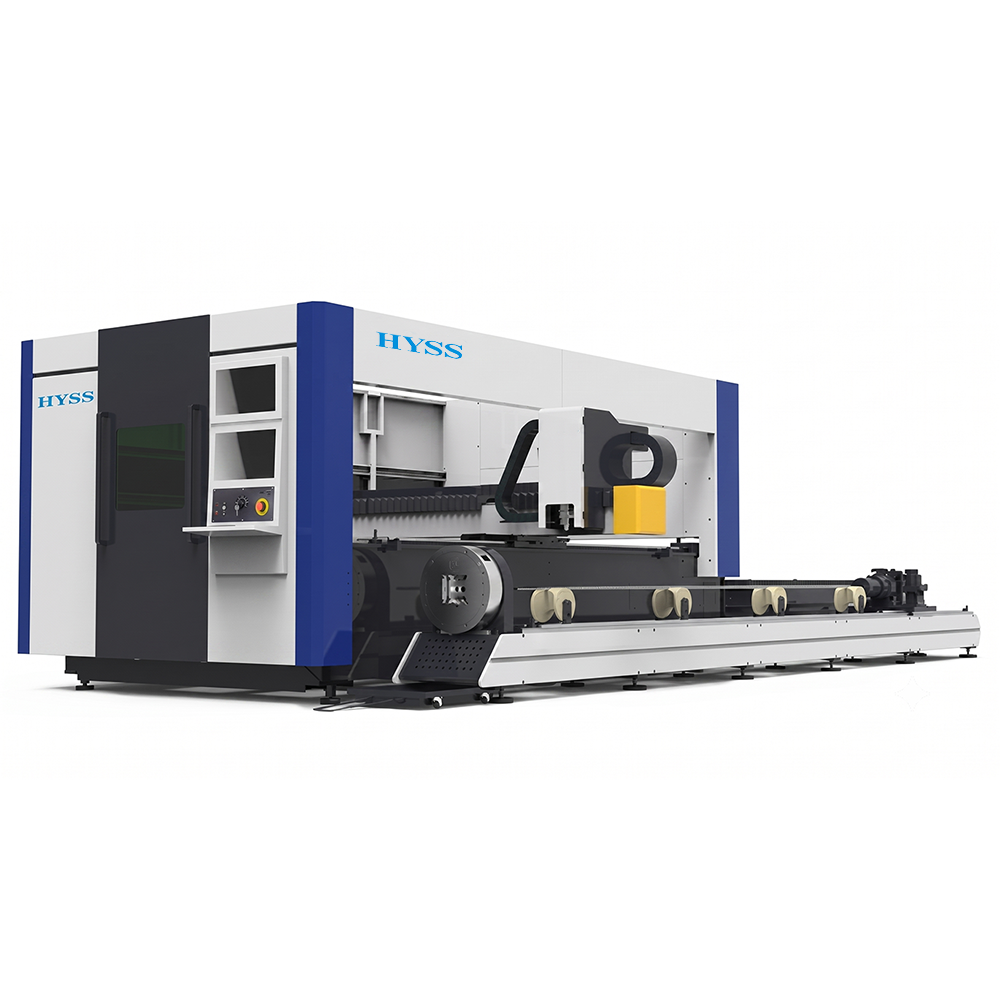

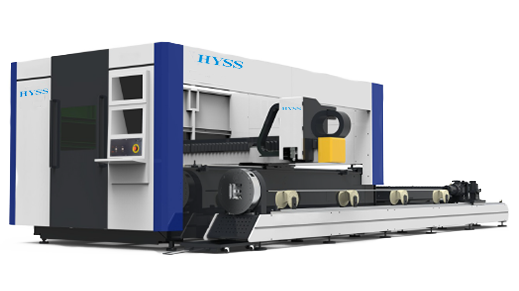

INTEGRATED LASER CUTTING MACHINE FOR TUBE AND PLATE
3D FIVE AXIS FIBER LASER CUTTING MACHINE
FLAT CUTTING MACHINE
FIBER LASER WELDING MACHINE
LASER PIPE CUTTING MACHINE

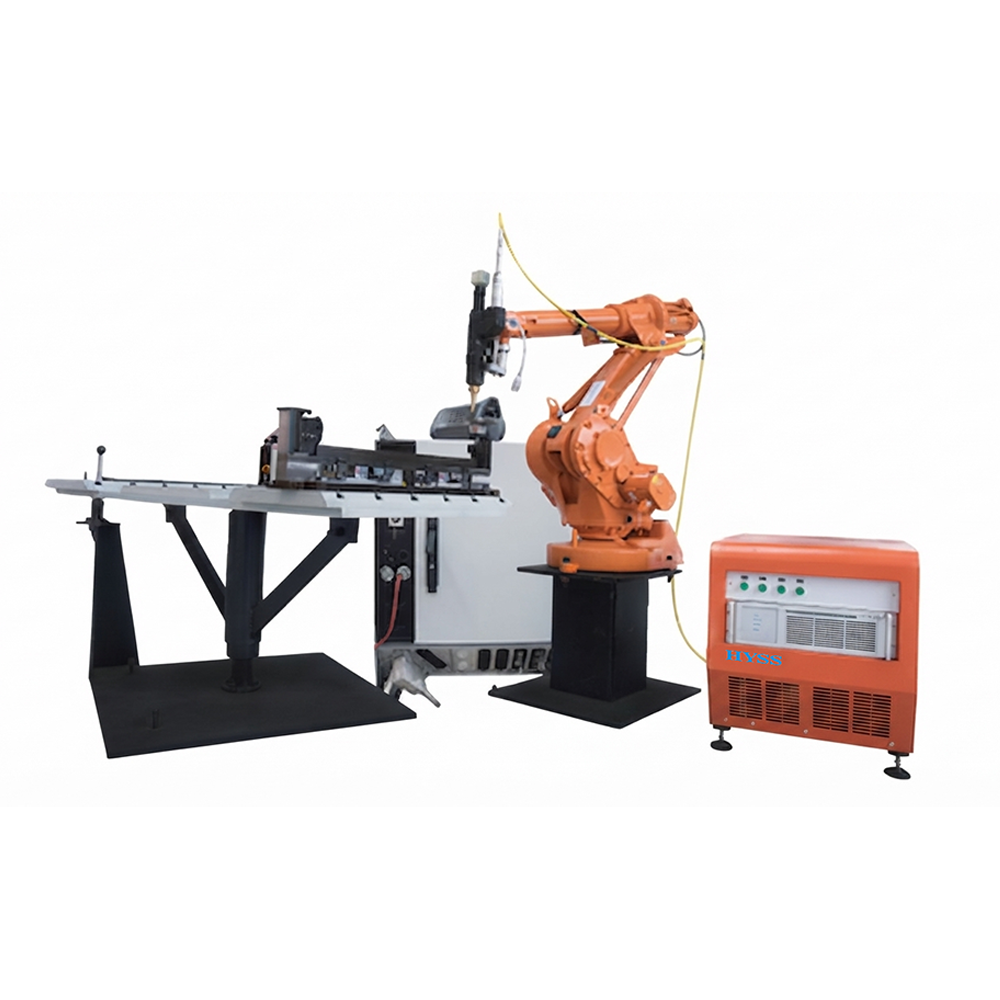

ROBOT WELDER
LASER PIPE CUTTING MACHINE

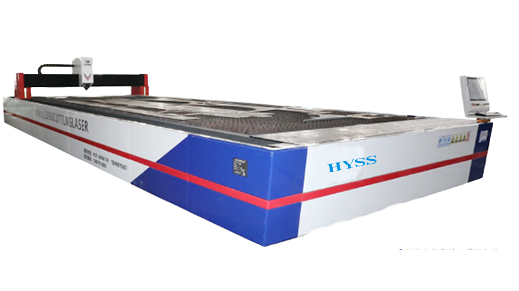

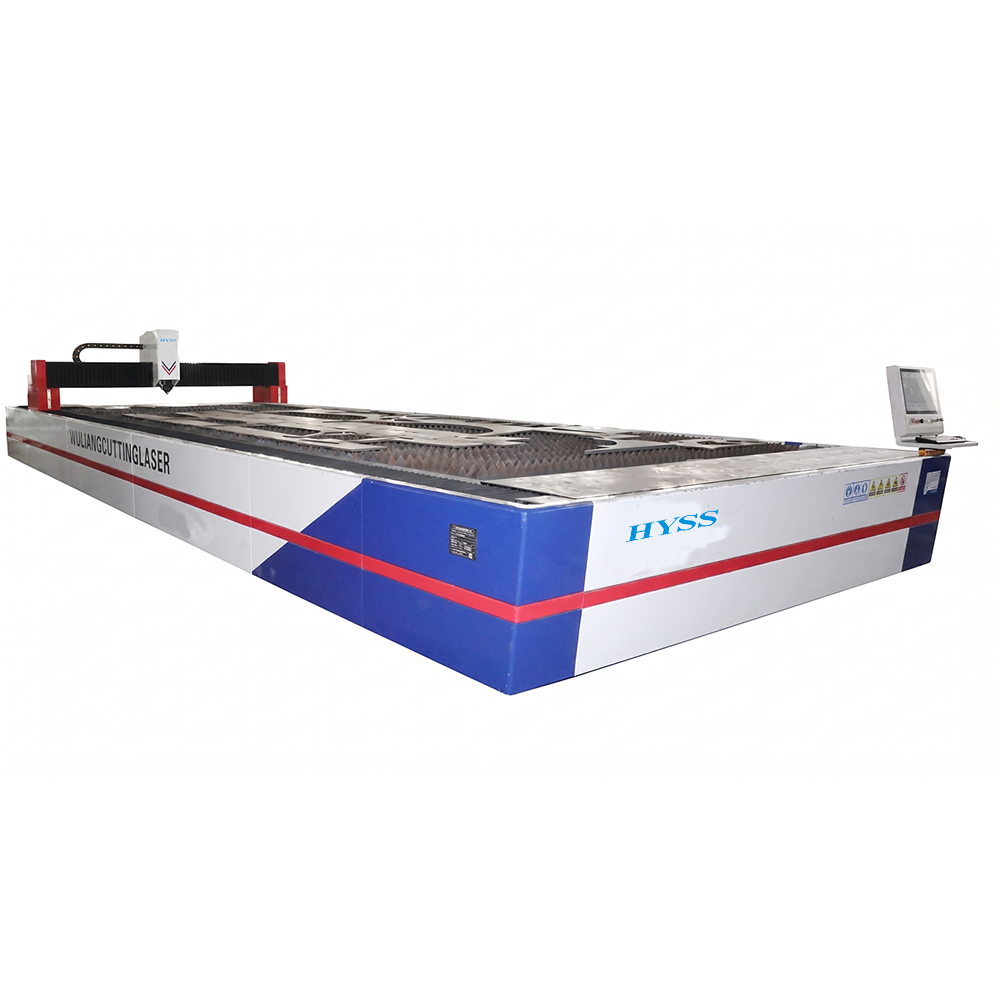

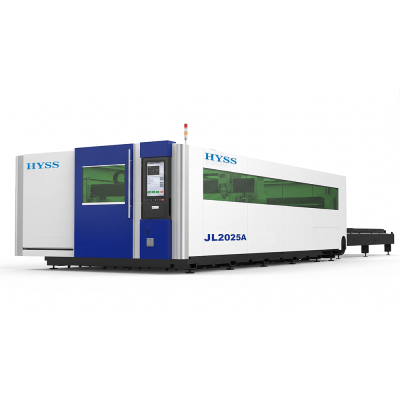

Machine Features
Fiber laser technology delivers narrower cutting kerf, lower material loss, high positioning precision and faster processing speed.
The complete system features high integration, outstanding stability and cutting-edge technology.
Low maintenance cost and energy consumption.
Closed-loop control with high-energy pulse power.
Widely applied in industries including 3C electronic products, sheet metal cutting, aerospace, automobile manufacturing, shipbuilding, instrumentation electronics, mechanical & electrical products, lighting equipment, household appliances and precision parts.
| Model | WHJL12025A | WHJL8025 | WHJL6025 | WHJL4020 |
|---|---|---|---|---|
| Laser Power | 20000W-10000W | 15000W-8000W | 12000W-6000W | 10000W-3000W |
| Working Range | 12000x2500mm | 8000x2500mm | 6000x2500mm | 4000x2000mm |
| Y Axis Travel | 12000mm | 8200mm | 6200mm | 4200mm |
| X Axis Travel | 2600mm | 2600mm | 2600mm | 2600mm |
| Z Axis Travel | 150mm | 150mm | 150mm | 150mm |
| X, Y Axis Repeat Positioning Accuracy | 0.03mm | 0.03mm | 0.03mm | 0.02mm |
| X, Y Axis Max. Acceleration | 1.0G | 1.0G | 1.0G | 1.0G |
| Max. Idling Speed | 150m/min | 150m/min | 150m/min | 150m/min |
| Max. Load of Worktable | 15T | 10T | 7.5T | 2.0T |
| Net Weight | 23T | 22T | 18T | 10T |
| Dimensions (L×W×H) | 27500x4100x2300mm | 19000x4100x2260mm | 14900x4100x2260mm | 11500x3770x2200mm |
Interested in this product? Send us the size, material and quantity for a quotation.
