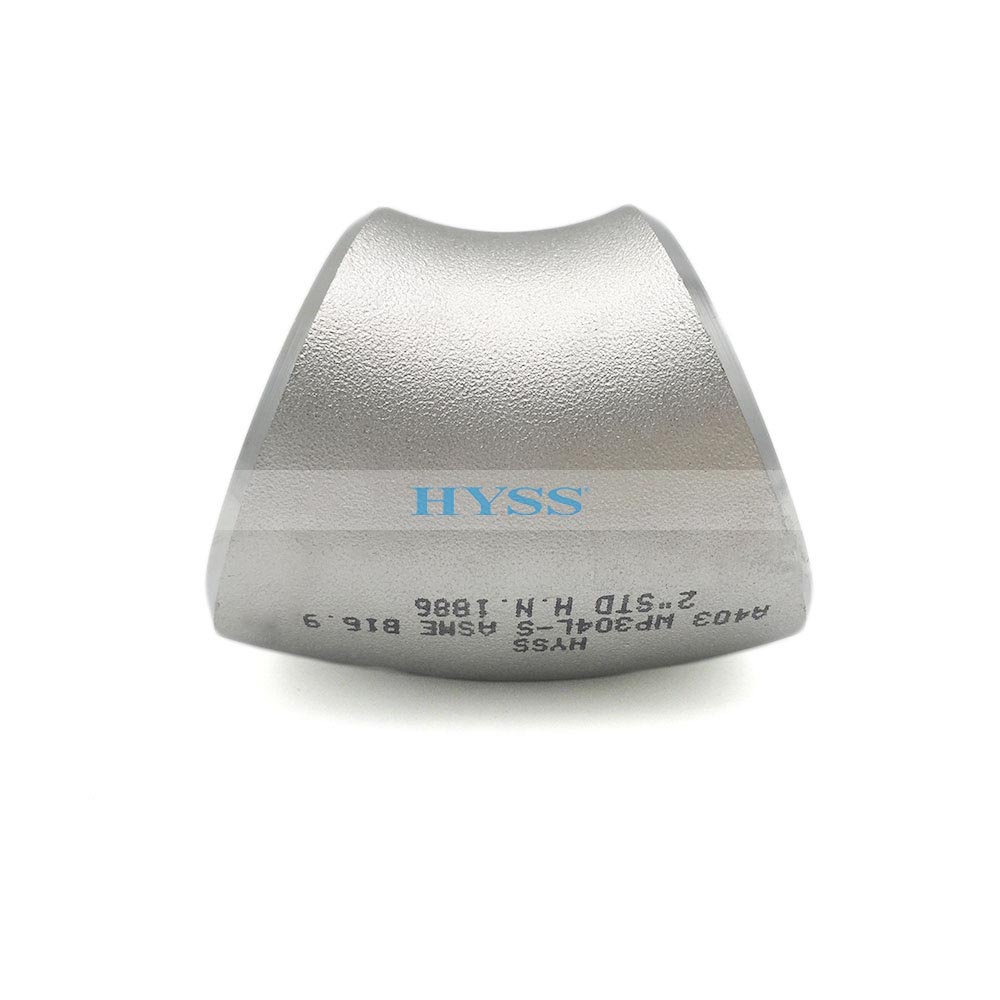

45° Elbows long radius

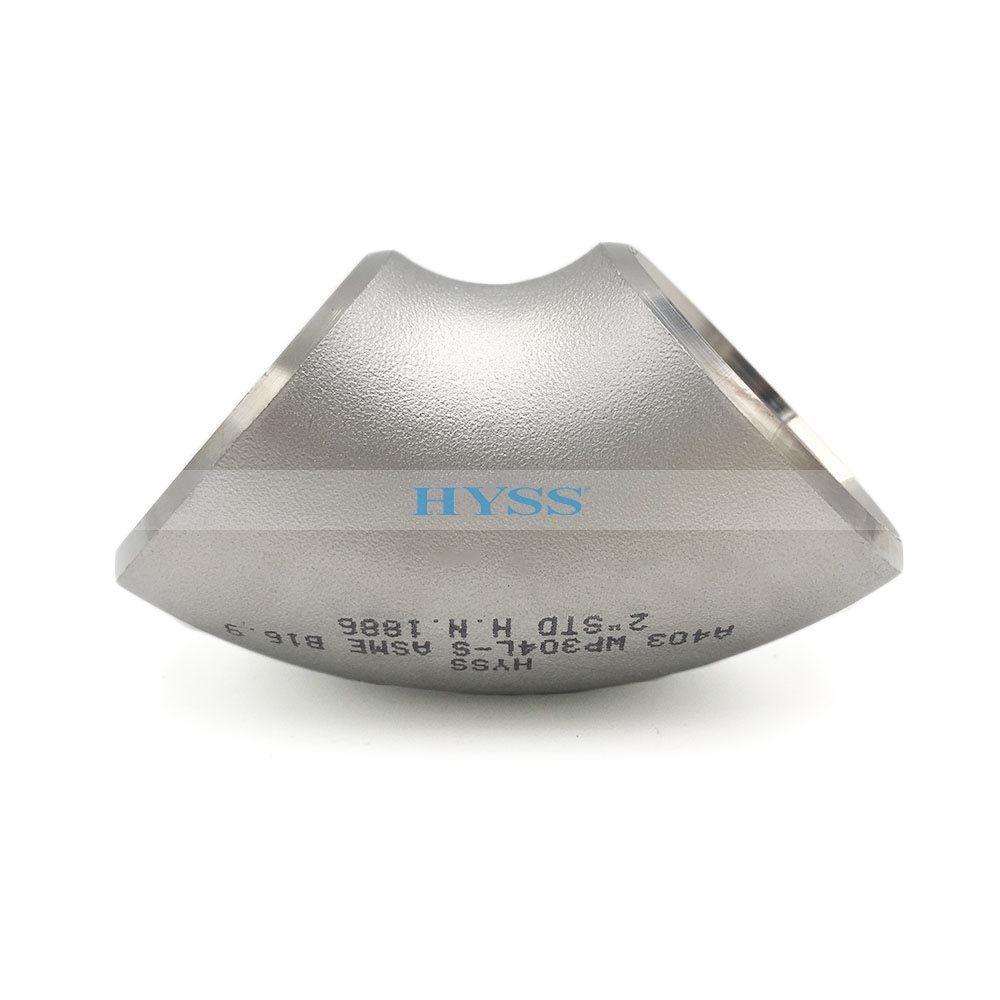

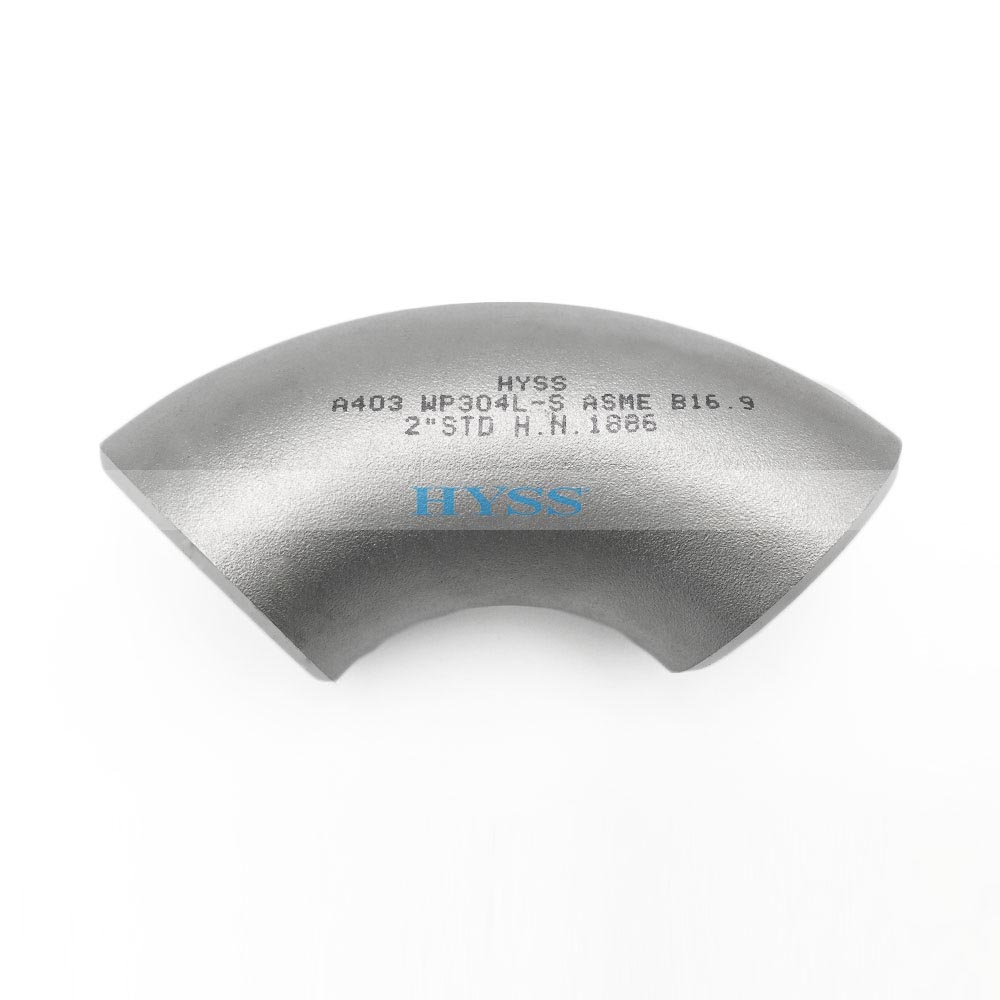

90° Elbows long radius

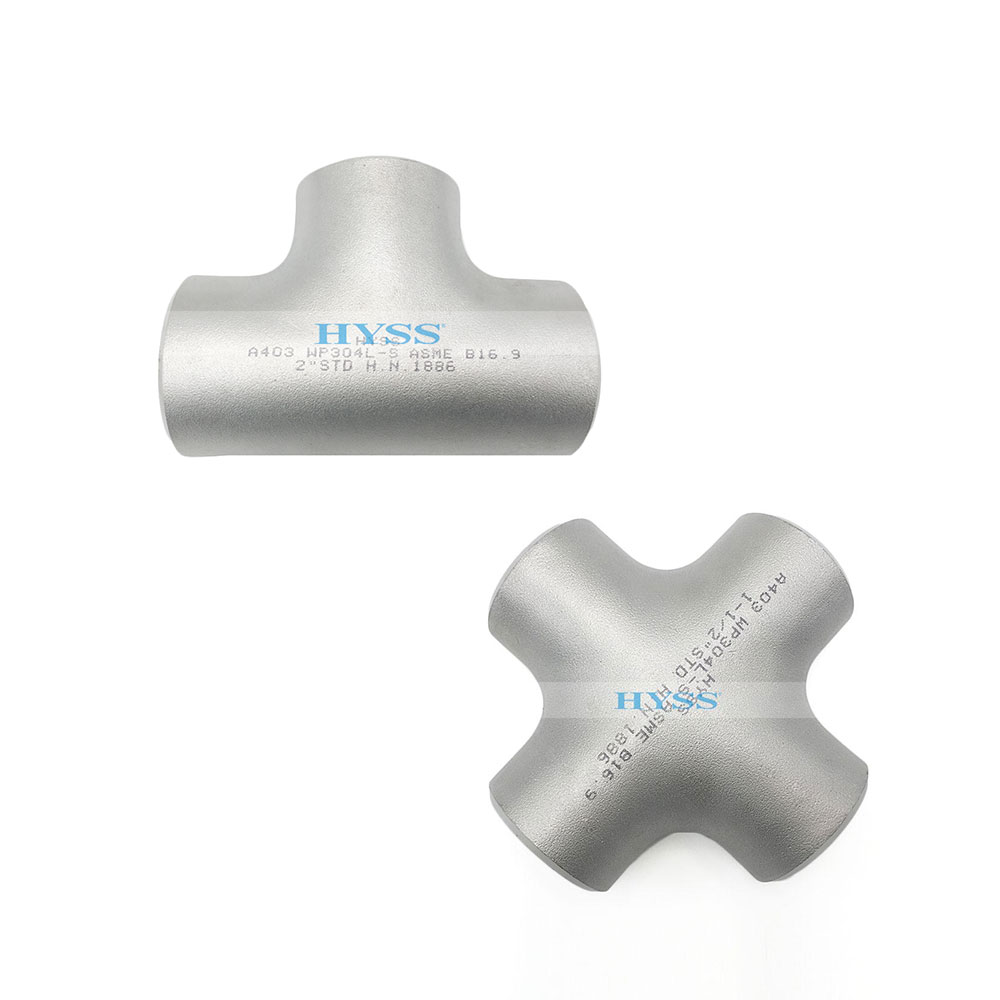

Straight tees & Crosses

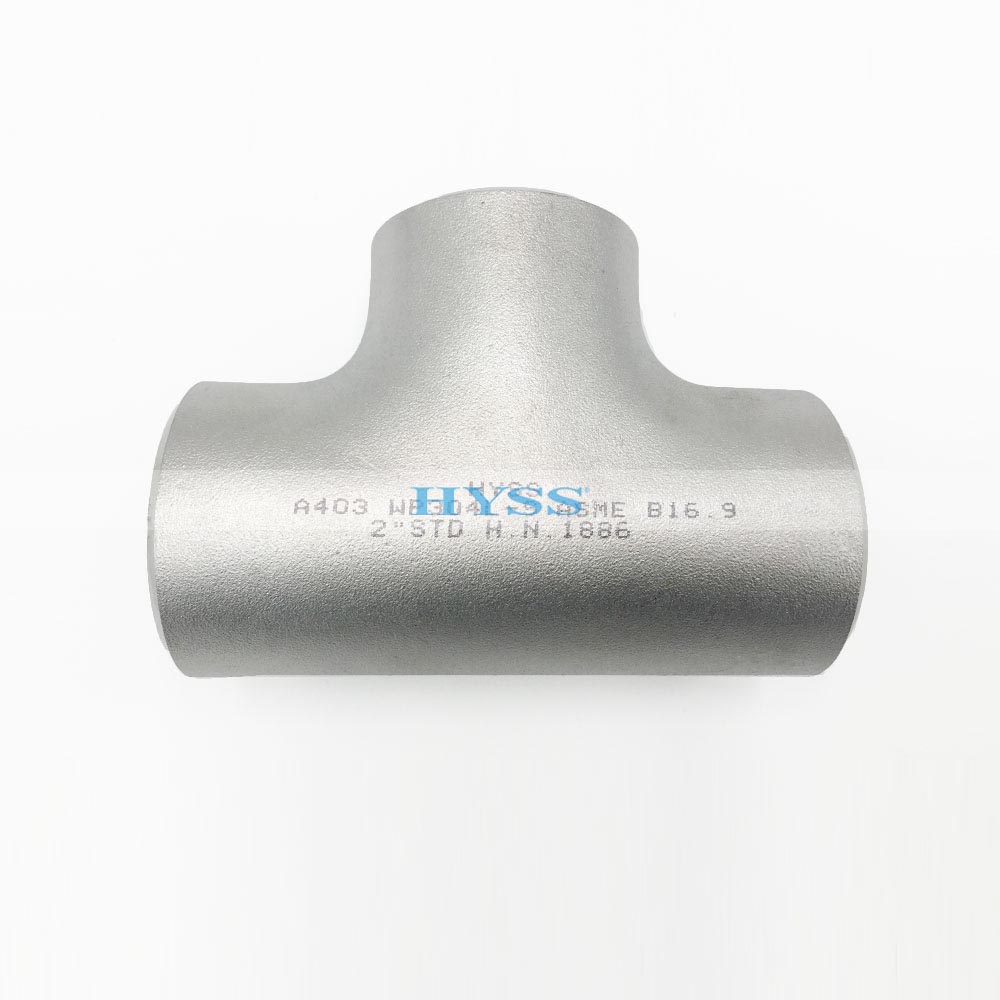

Straight tees

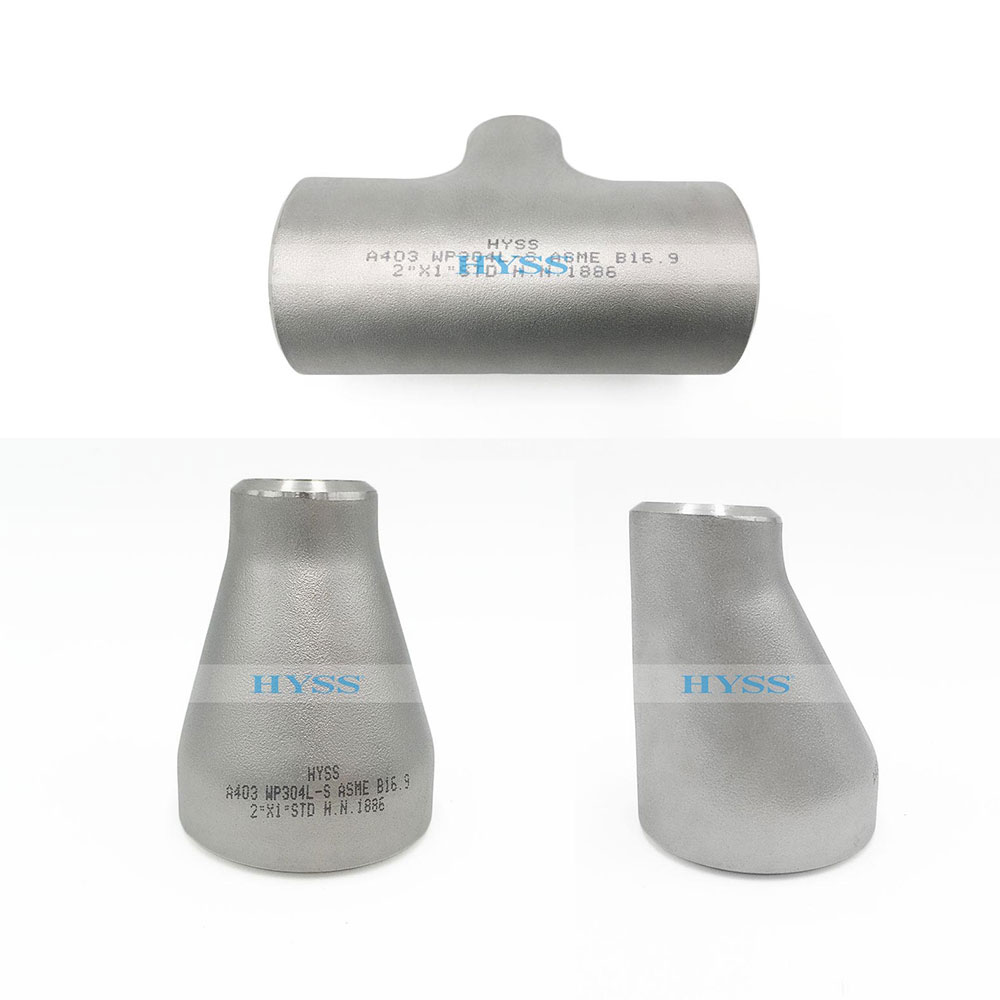

Reducing tees & Reducers
90° Elbows short radius

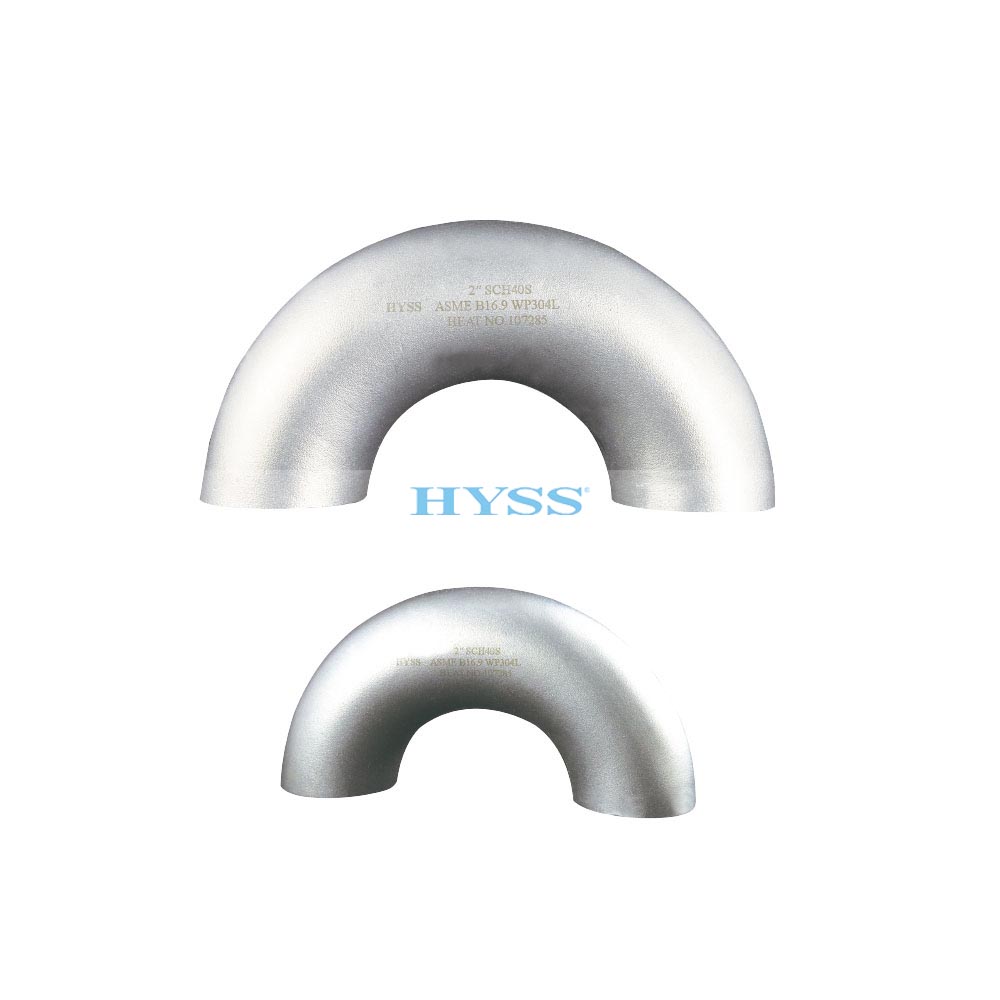

180° Elbows long radius & long radius

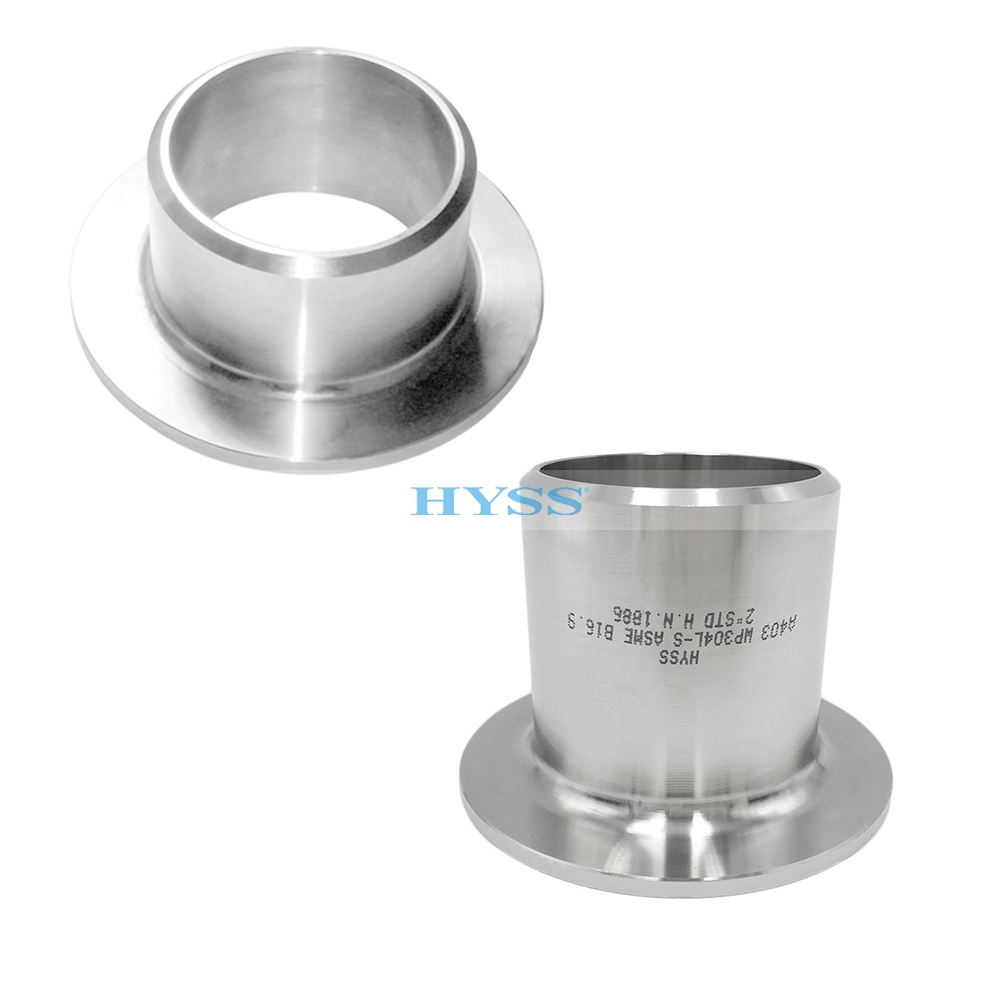

Buttweld Stub Ends

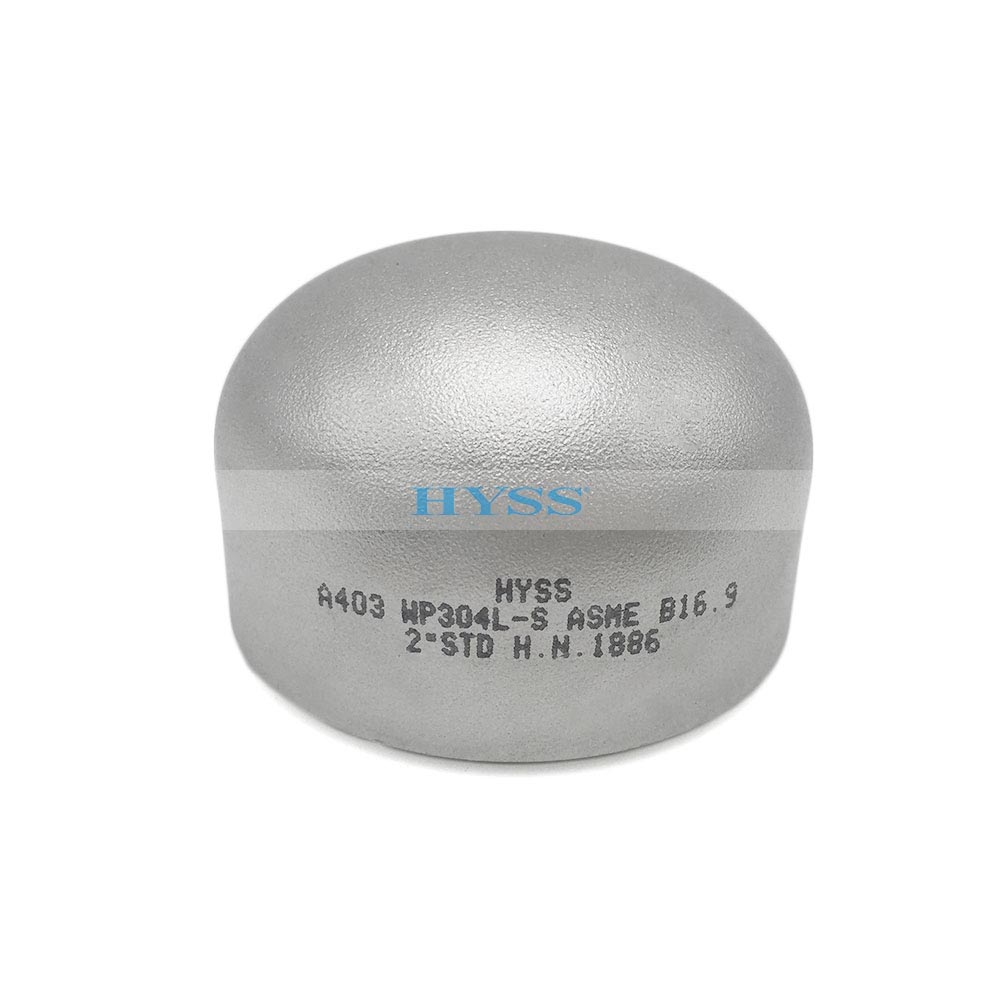

Caps

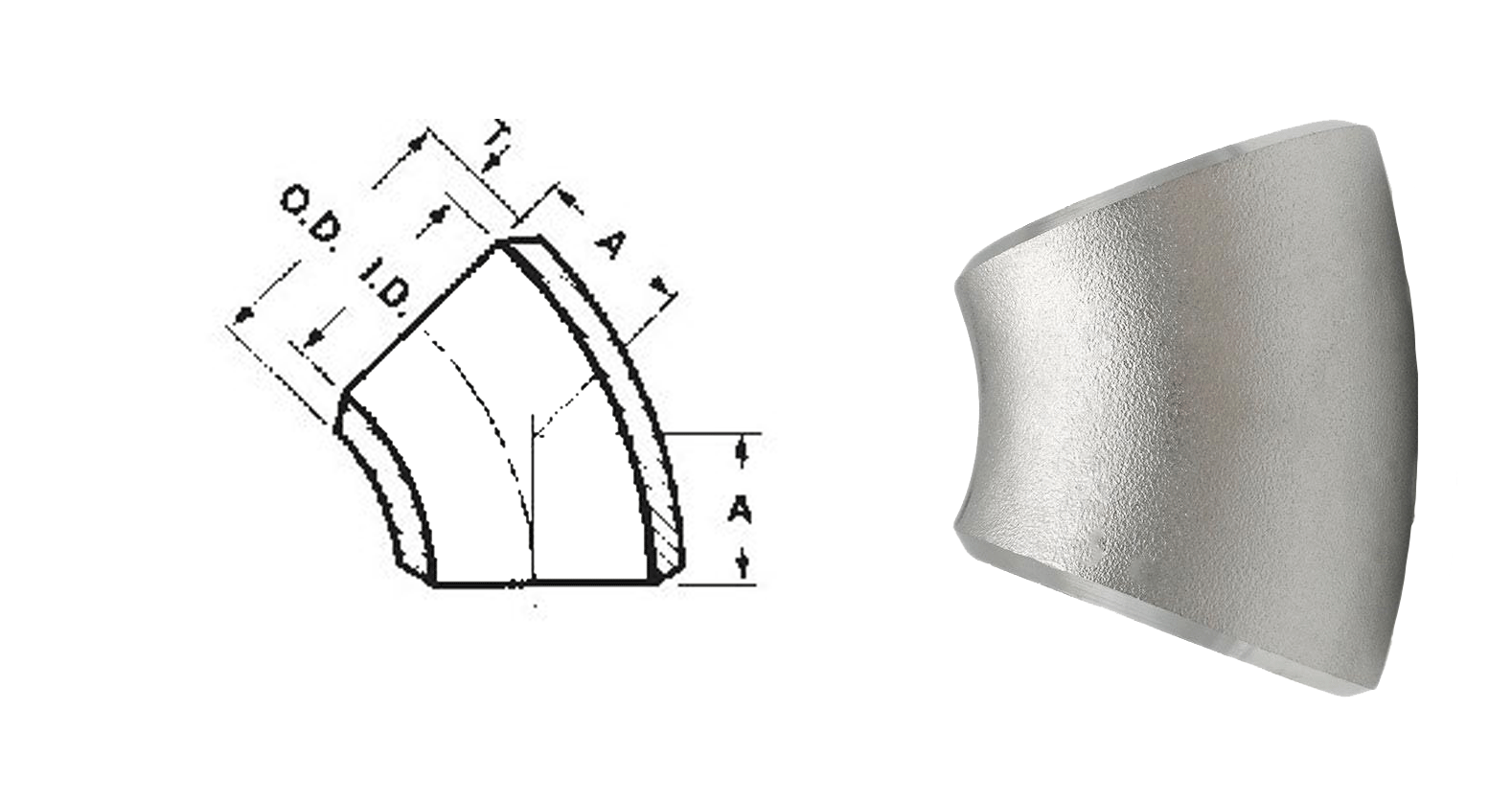

45°elbows long radiusStandard Weight, Extra Strong, Schedule 160,Double Extra StrongCarbon and ferritic alloy steel, carbon , stainlessduplex and alloy steel, ASTM A-234, ASME/ANSI Bl6.9,ASTM A-234,A403, A420,A8 15,ASME/ANSI Bl6.9.
NPS DN | Outside Diameter at Bevel O.D. (mm) | Centre to End Nominal A (mm) | SCHEDULE 160 | DOUBLE EXTRA STRONG | |||||
Inside Diameter l.D. (mm) | Wall Thickness T (mm) | Approx. Weight (kg) | Inside Diameter l.D. (mm) | Wall Thickness T (mm) | Approx. Weight (kg) | ||||
| 1/2 | 15 | 21 | 16 | - | - | - | - | - | - |
| 3/4 | 20 | 27 | 11 | - | - | - | 11.02 | 7.82 | .08 |
| 1 | 25 | 33 | 22 | 20.70 | 6.35 | .17 | 15.21 | 9.09 | .18 |
| 1 1/4 | 32 | 42 | 25 | 29.46 | 6.35 | .23 | 22.76 | 9.70 | .25 |
| 1 1/2 | 40 | 48 | 29 | 34.00 | 7.14 | .45 | 27.94 | 10.16 | .52 |
| 2 | 50 | 60 | 35 | 42.85 | 8.74 | .79 | 38.18 | 11.07 | .96 |
| 2 1/2 | 65 | 73 | 44 | 53.98 | 9.53 | 1.35 | 44.98 | 14.02 | 1.7 |
| 3 | 80 | 89 | 51 | 66.65 | 11.13 | 2.0 | 58.42 | 15.24 | 2.6 |
| 3 1/2 | 90 | 102 | 57 | - | - | - | 69.29 | 16.15 | 3.9 |
| 4 | 100 | 114 | 64 | 87.33 | 13.49 | 4.3 | 80.06 | 17.12 | 4.8 |
| 5 | 125 | 141 | 79 | 109.55 | 15.88 | 7.65 | 103.20 | 19.05 | 8.6 |
| 6 | 150 | 168 | 95 | 131.80 | 18.26 | 13.5 | 124.38 | 21.95 | 14.4 |
| 8 | 200 | 219 | 127 | 173.05 | 23.01 | 29 | 174.63 | 22.23 | 27.0 |
| 10 | 250 | 273 | 150 | 215.90 | 28.58 | 61 | - | - | - |
| 12 | 300 | 324 | 190 | 257.20 | 33.32 | 104 | - | - | - |
| 14 | 350 | 356 | 222 | 284.20 | 35.71 | 125 | - | - | - |
| 16 | 400 | 406 | 254 | 325.40 | 40.49 | 187 | - | - | - |
NPS DN | Outsid Diameter at Bevel O.D. (mm) | Centre to End Nominal A(mm) | SCHEDULE 160 | DOUBLE EXTRA STRONG | |||||
Inside Diameter l.D. (mm) | Wall Thickness T (mm) | Approx. Weight (kg) | Inside Diameter l.D. (mm) | Wall Thickness T (mm) | Approx. Weight (kg) | ||||
| 1/2 | 15 | 21 | 16 | - | - | - | - | - | - |
| 3/4 | 20 | 27 | 11 | - | - | - | 11.02 | 7.82 | .08 |
| 1 | 25 | 33 | 22 | 20.70 | 6.35 | .17 | 15.21 | 9.09 | .18 |
| 1 1/4 | 32 | 42 | 25 | 29.46 | 6.35 | .23 | 22.76 | 9.70 | .25 |
| 1 1/2 | 40 | 48 | 29 | 34.00 | 7.14 | .45 | 27.94 | 10.16 | .52 |
| 2 | 50 | 60 | 35 | 42.85 | 8.74 | .79 | 38.18 | 11.07 | .96 |
| 2 1/2 | 65 | 73 | 44 | 53.98 | 9.53 | 1.35 | 44.98 | 14.02 | 1.7 |
| 3 | 80 | 89 | 51 | 66.65 | 11.13 | 2.0 | 58.42 | 15.24 | 2.6 |
| 3 1/2 | 90 | 102 | 57 | - | - | - | 69.29 | 16.15 | 3.9 |
| 4 | 100 | 114 | 64 | 87.33 | 13.49 | 4.3 | 80.06 | 17.12 | 4.8 |
| 5 | 125 | 141 | 79 | 109.55 | 15.88 | 7.65 | 103.20 | 19.05 | 8.6 |
| 6 | 150 | 168 | 95 | 131.80 | 18.26 | 13.5 | 124.38 | 21.95 | 14.4 |
| 8 | 200 | 219 | 127 | 173.05 | 23.01 | 29 | 174.63 | 22.23 | 27.0 |
| 10 | 250 | 273 | 150 | 215.90 | 28.58 | 61 | - | - | - |
| 12 | 300 | 324 | 190 | 257.20 | 33.32 | 104 | - | - | - |
| 14 | 350 | 356 | 222 | 284.20 | 35.71 | 125 | - | - | - |
| 16 | 400 | 406 | 254 | 325.40 | 40.49 | 187 | - | - | - |
Notes:
*NPS 3 -1/2 (DN 90) XXS is not specified in ASME/ANSIB36.10M.Produced from x-rayed,stress relieved welded pipe.Welds are 100% radio graphed inaccordance with the requirements of AME Boiler and Pressure Vessel Code.
