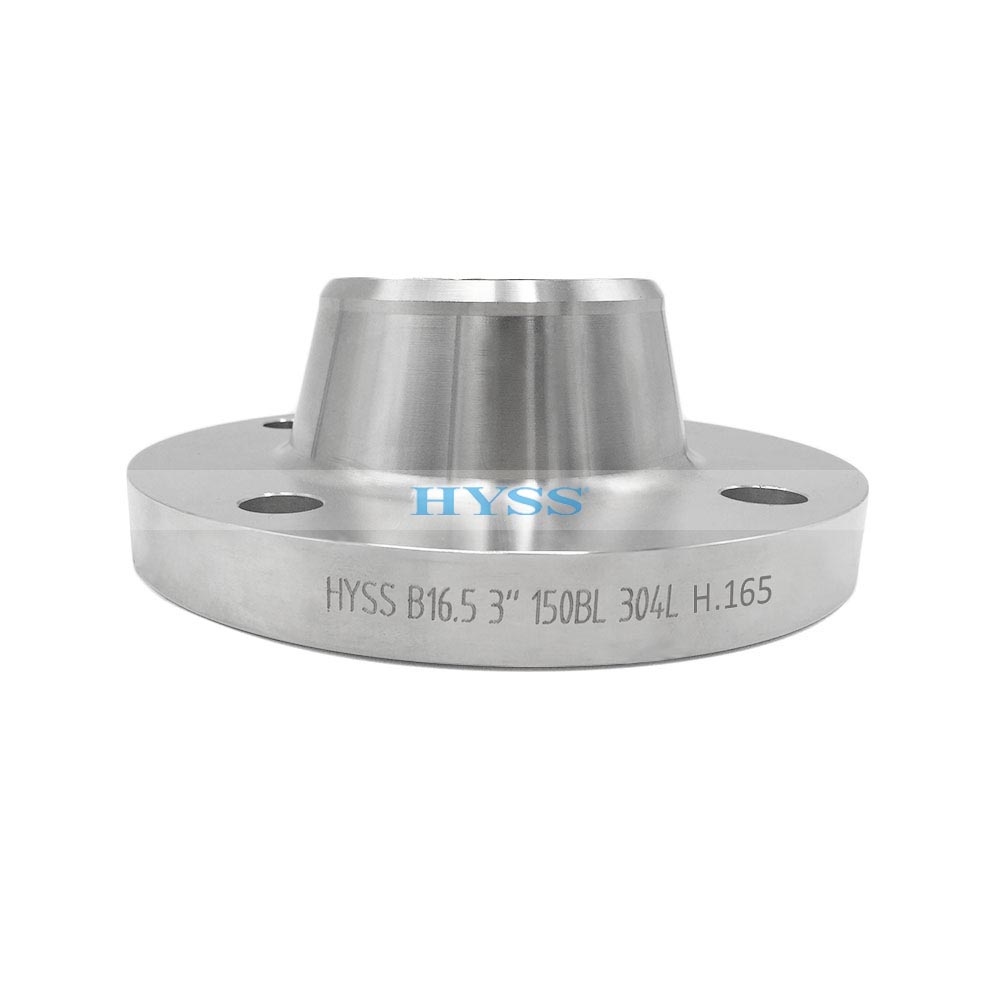

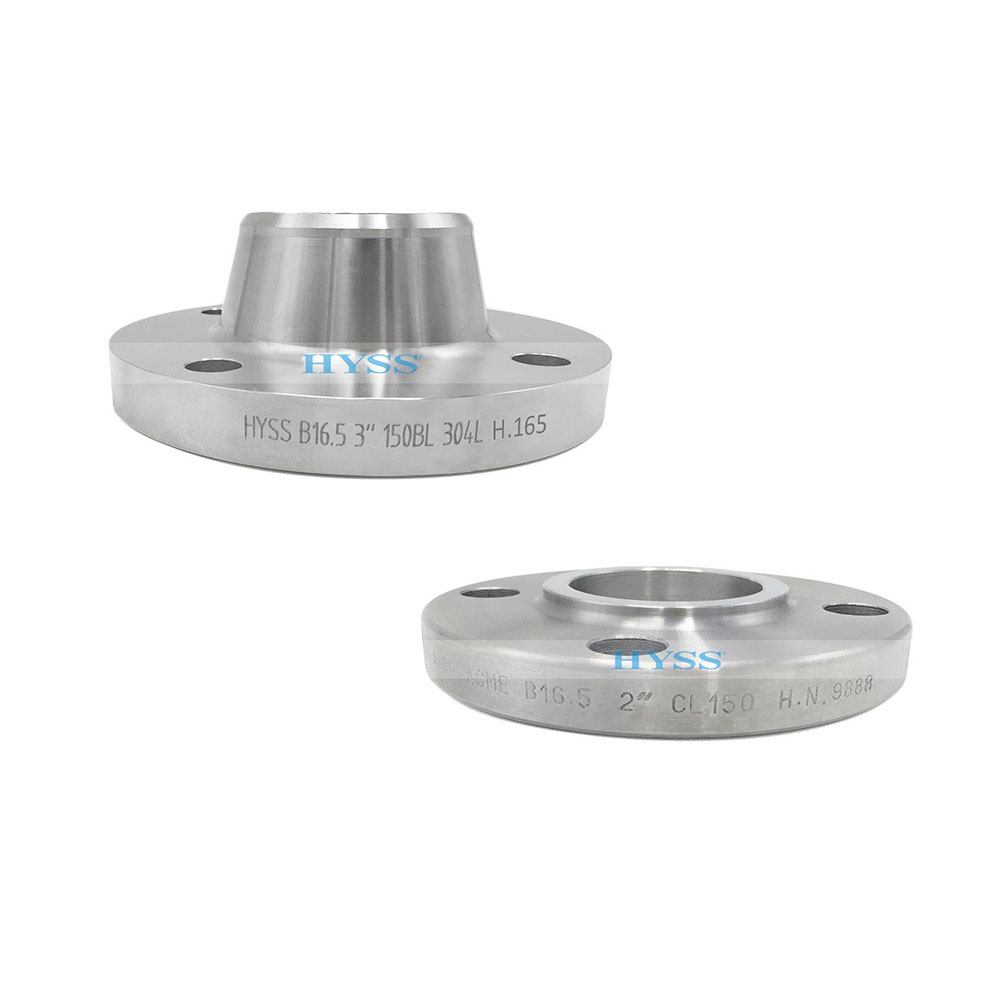

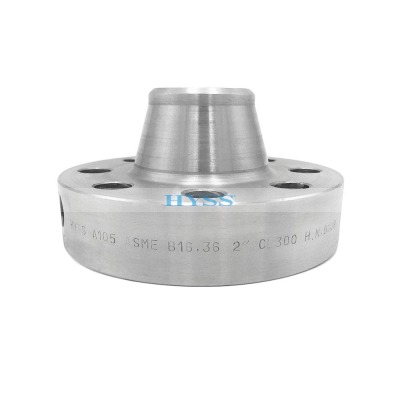

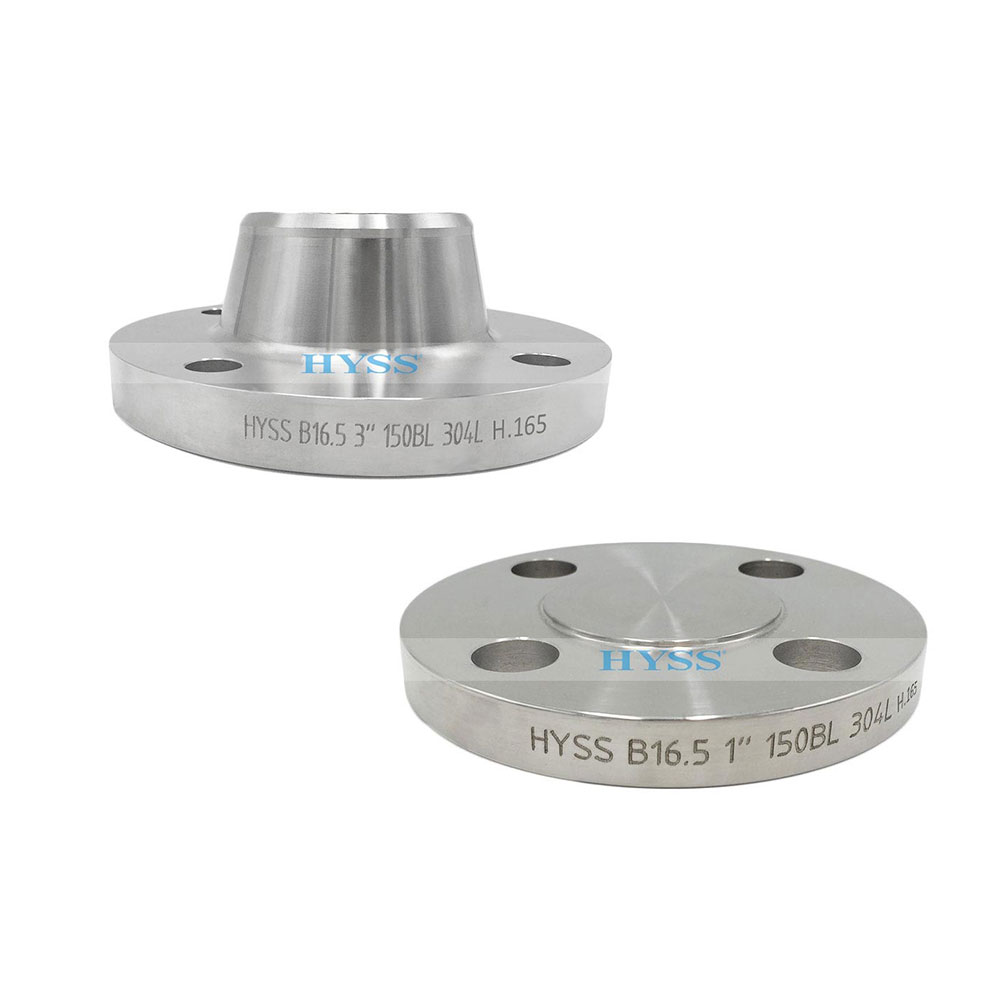

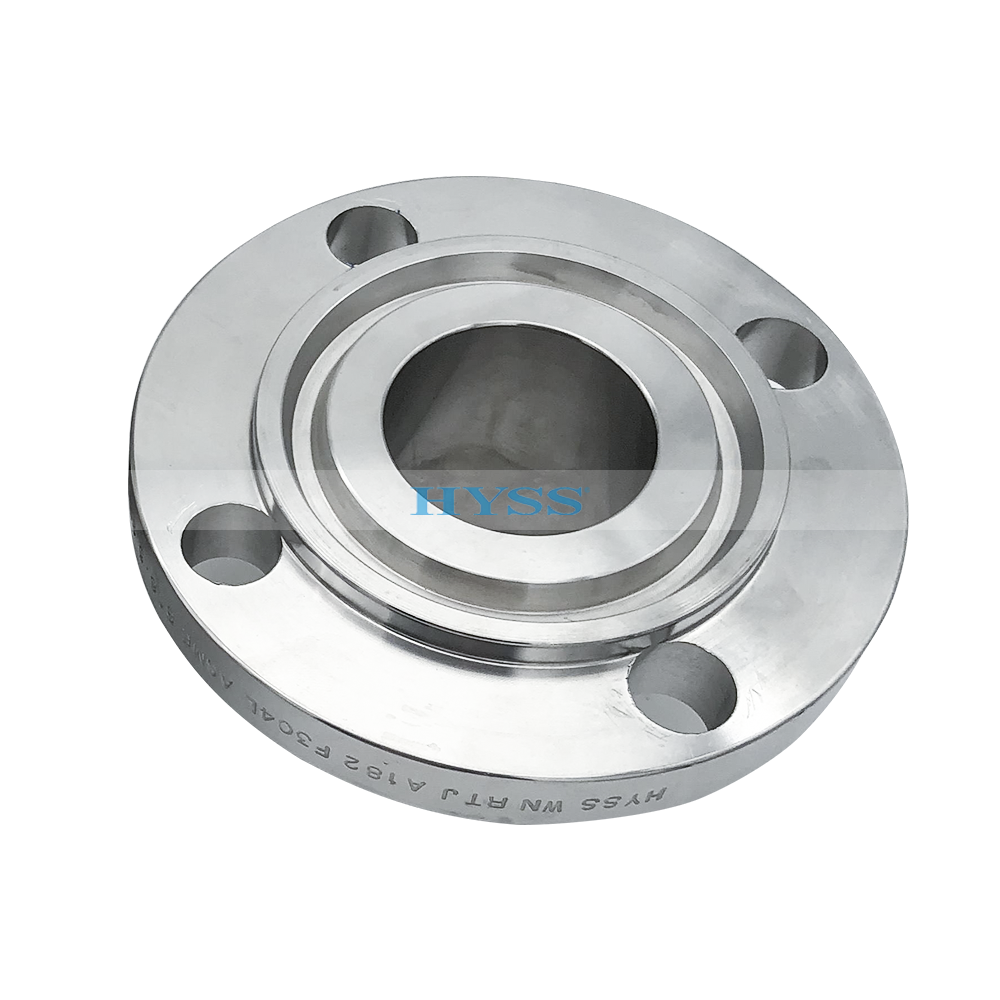

Weld Neck Flanges-ANSI B16.5

Class 150 lb

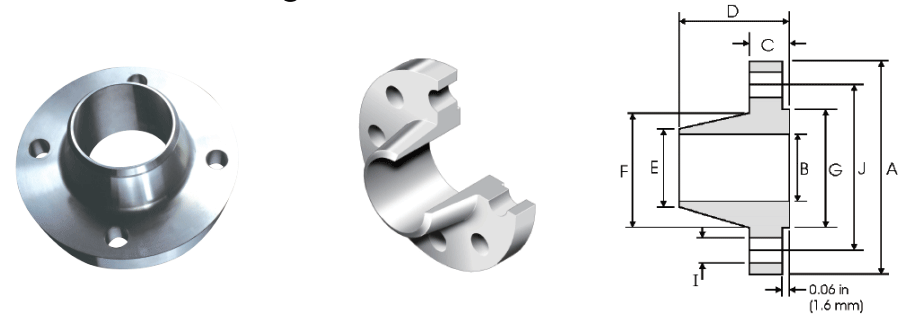

Pipe		Flange Data				Hub Data
Nominal Pipe Size		A	B	C	D	E	F
	Outside Diameter	Overall Diameter	Inside Diameter	Flange Thickness min	Overall Length	Diameter at Weld Bevel	Diameter of Circles of Holes
	Outside Diameter	Overall Diameter	Inside Diameter	Flange Thickness min	Overall Length	Diameter at Weld Bevel	Diameter of Circles of Holes
	mm	mm	mm	mm	mm	mm	mm
1/2	21.30	88.90	15.70	11.20	47.80	21.30	30.20
3/4	26.70	98.60	20.80	12.70	52.30	26.70	38.10
1	33.40	108.0	26.70	14.20	55.60	33.50	49.30
1 1/4	42.20	117.3	35.10	15.70	57.15	42.20	58.70
1 1/2	48.30	127.0	40.90	17.50	62.00	48.30	65.00
2	60.30	152.4	52.60	19.10	63.50	60.45	77.70
2 1/2	73.00	177.8	62.70	22.40	69.85	73.15	90.40
3	88.90	190.5	78.00	23.90	69.85	88.90	108.0
3 1/2	101.6	215.9	90.20	23.90	71.40	101.6	122.2
4	114.3	228.6	102.4	23.90	76.20	114.3	134.9
5	141.3	254.0	128.3	23.90	88.90	141.2	163.6
6	168.3	279.4	154.2	25.40	88.90	168.4	192.0
8	219.1	342.9	202.7	28.40	101.6	219.2	246.1
10	273.0	406.4	254.5	30.20	101.6	273.0	304.8
12	323.8	482.6	304.8	31.75	114.3	323.8	365.3
14	355.6	533.4	To be specified by Purchaser	35.10	127.0	355.6	400.1
16	406.4	596.9		36.60	127.0	406.4	475.2
18	457.2	635.0		39.60	139.7	457.2	505.0
20	508.0	698.5		42.90	144.5	508.0	558.8
24	609.6	812.8		47.80	152.4	609.6	663.4

Pipe		Raised Face	Drilling Data			Weight
Nominal Pipe Size		G	H	I	J
	Outside Diameter	Face Diameter	Number of Holes	Bolt Hole Diameter	Diameter of Circles of Holes	kg/ pieces
	Outside Diameter	Face Diameter	Number of Holes	Bolt Hole Diameter	Diameter of Circles of Holes	kg/ pieces
	mm	mm		mm	mm
1/2	21.30	35.00	4	15.70	60.45	0.48
3/4	26.70	42.90	4	15.70	69.85	0.71
1	33.40	50.80	4	15.70	79.25	1.01
1 1/4	42.20	63.50	4	15.70	88.90	1.33
1 1/2	48.30	73.15	4	15.70	98.60	1.72
2	60.30	91.90	4	19.10	120.7	2.58
2 1/2	73.00	104.6	4	19.10	139.7	4.11
3	88.90	127.0	4	19.10	152.4	4.92
3 1/2	101.6	139.7	8	19.10	177.8	6.08
4	114.3	157.2	8	19.10	190.5	6.84
5	141.3	185.7	8	22.40	215.9	8.56
6	168.3	215.9	8	22.40	241.3	10.6
8	219.1	269.7	8	22.40	298.5	17.6
10	273.0	323.9	12	25.40	362.0	24.0
12	323.8	381.0	12	25.40	431.8	36.5
14	355.6	412.8	12	28.40	476.3	48.4
16	406.4	469.9	16	28.40	539.8	60.6
18	457.2	533.4	16	31.75	577.9	68.3
20	508.0	584.2	20	31.75	635.0	84.5
24	609.6	692.2	20	35.10	749.3	115

Class 300 lb

Pipe		Flange Data				Hub Data
Nominal Pipe Size		A	B	C	D	E	F
	Outside Diameter	Overall Diameter	Inside Diameter	Flange Thickness min	Overall Length	Diameter at Weld Bevel	Hub Diameter
	Outside Diameter	Overall Diameter	Inside Diameter	Flange Thickness min	Overall Length	Diameter at Weld Bevel	Hub Diameter
	mm	mm	mm	mm	mm	mm	mm
1/2	21.30	95.20	15.70	14.20	52.30	21.30	38.10
3/4	26.70	11.73	20.80	15.70	57.15	26.70	47.70
1	33.40	12.39	26.70	17.50	62.00	33.50	53.80
1 1/4	42.20	13.33	35.10	19.00	65.00	42.20	63.50
1 1/2	48.30	15.54	40.90	20.60	68.30	48.30	69.85
2	60.30	16.51	52.60	22.30	69.85	60.45	84.00
2 1/2	73.00	19.05	62.70	25.40	76.20	73.15	100.00
3	88.90	209 .5	78.00	28.40	79.25	88.90	117.30
3 1/2	101.6	228.60	30.20	30.20	81.00	101.60	133.30
4	114.3	254.00	102.40	31.70	85.80	114.30	146.00
5	141.3	279.40	128.30	35.00	98.50	141.20	177.80
6	168.3	317.50	154.20	36.50	98.50	168.40	206.20
8	219.1	381.00	202.70	41.10	111.2	219.20	260.30
10	273.0	444.50	254.50	47.70	117.3	273.00	320.50
12	323.8	520.70	304.80	50.80	130.0	323.80	374.60
14	355.6	584.20	To be specified by purchaser	53.80	142.7	355.60	425.40
16	406.4	647.70		57.15	146.0	406.40	482.60
18	457.2	711.20		60.45	158.7	457.20	533.40
20	508.0	774.70		63.50	162.0	508.00	587.20
24	609.6	914.40		69.85	168.1	609.00	701.50

Pipe		Raised Face	Drilling Data			Weight
Nominal Pipe Size		G	H	I	J
	Outside Diameter	Face Diameter	Number of Holes	Bolt Hole Diameter	Diameter of Circles of Holes	kg/ pieces
	Outside Diameter	Face Diameter	Number of Holes	Bolt Hole Diameter	Diameter of Circles of Holes	kg/ pieces
	mm	mm		mm	mm
1/2	21.30	35.00	4	15.70	66.55	0.75
3/4	26.70	42.90	4	19.00	82.50	1.26
1	33.40	50.80	4	19.00	88.90	1.52
1 1/4	42.20	63.50	4	19.00	98.50	2.03
1 1/2	48.30	73.15	4	22.30	114.3	2.89
2	60.30	91.90	8	19.00	127.0	3.40
2 1/2	73.00	104.60	8	22.30	149.3	5.17
3	88.90	127.00	8	22.30	168.1	6.93
3 1/2	101.6	139.70	8	22.30	184.1	8.67
4	114.3	157.20	8	22.30	200.1	11.2
5	141.3	185.70	8	22.30	234.9	15.1
6	168.3	215.90	12	22.30	269.7	19.1
8	219.1	269.70	12	25.40	330.2	29.9
10	273.0	323.80	16	28.40	387.3	42.7
12	323.8	381.00	16	31.70	450.8	61.8
14	355.6	412.70	20	31.70	514.3	85.8
16	406.4	469.90	20	35.00	571.5	106
18	457.2	533.40	24	35.00	628.6	131
20	508.0	584.20	24	35.00	685.8	158
24	609.6	692.10	24	38.10	812.8	230

Class 600 lb

Pipe		Flange Data				Hub Data
Nominal Pipe Size		A	B	C	D	E	F
	Outside Diameter	Overall Diameter	Inside Diameter	Flange Thickness min	Overall Length	Diameter at Weld Bevel	Hub Diameter
	Outside Diameter	Overall Diameter	Inside Diameter	Flange Thickness min	Overall Length	Diameter at Weld Bevel	Hub Diameter
	mm	mm	mm	mm	mm	mm	mm
1/2	21.30	95.20	To be specified by purchaser	14.20	52.30	21.30	38.10
3/4	26.70	11.73		15.70	57.15	26.70	47.80
1	33.40	12.39		17.50	62.00	33.50	53.80
1 1/4	42.20	13.33		20.60	66.55	42.20	63.50
1 1/2	48.30	15.54		22.40	69.85	48.30	69.85
2	60.30	16.51		25.40	73.15	60.45	84.10
2 1/2	73.00	19.05		28.40	79.25	73.15	100.10
3	88.90	209 .5		31.75	82.60	88.90	117.30
3 1/2	101.6	228.60		35.10	85.90	101.60	133.40
4	114.3	254.00		35.10	88.90	114.30	146.10
5	141.3	279.40		38.10	101.60	141.20	177.80
6	168.3	317.50		41.10	103.10	168.40	206.20
8	219.1	381.00		47.80	117.3	219.20	260.40
10	273.0	444.50		53.80	124.0	273.00	320.50
12	323.8	520.70		57.15	136.7	323.80	374.70
14	355.6	584.20		60.45	149.4	355.60	425.50
16	406.4	647.70		63.50	152.4	406.40	482.60
18	457.2	711.20		66.55	165.1	457.20	533.40
20	508.0	774.70		69.85	168.1	508.00	587.20
24	609.6	914.40		76.20	174.8	609.00	701.50

Pipe		Raised Face	Drilling Data			Weight
Nominal Pipe Size		G	H	I	J
	Outside Diameter	Face Diameter	Number of Holes	Bolt Hole Diameter	Diameter of Circles of Holes	kg/ pieces
	Outside Diameter	Face Diameter	Number of Holes	Bolt Hole Diameter	Diameter of Circles of Holes	kg/ pieces
	mm	mm		mm	mm
1/2	21.30	35.00	4	15.70	66.55	0.87
3/4	26.70	42.90	4	19.10	82.60	1.45
1	33.40	50.80	4	19.10	88.90	1.76
1 1/4	42.20	63.50	4	19.10	98.60	2.49
1 1/2	48.30	73.15	4	22.40	114.3	3.49
2	60.30	91.90	8	19.10	127.0	4.36
2 1/2	73.00	104.60	8	22.40	149.4	6.43
3	88.90	127.00	8	22.40	168.1	8.53
3 1/2	101.6	139.70	8	25.40	184.2	10.7
4	114.3	157.20	8	25.40	200.2	12.8
5	141.3	185.70	8	25.40	235.0	16.9
6	168.3	215.90	12	25.40	269.7	22.0
8	219.1	269.70	12	28.40	330.2	34.7
10	273.0	323.80	16	31.75	387.4	48.5
12	323.8	381.00	16	35.10	450.9	69.6
14	355.6	412.70	20	35.10	514.4	95.5
16	406.4	469.90	20	38.10	571.5	118
18	457.2	533.40	24	38.10	628.7	145
20	508.0	584.20	24	41.10	685.8	173
24	609.6	692.10	24	47.80	812.8	249

Class 900 lb

Pipe		Flange Data				Hub Data
Nominal Pipe Size		A	B	C	D	E	F
	Outside Diameter	Overall Diameter	Inside Diameter	Flange Thickness min	Overall Length	Diameter at Weld Bevel	Hub Diameter
	Outside Diameter	Overall Diameter	Inside Diameter	Flange Thickness min	Overall Length	Diameter at Weld Bevel	Hub Diameter
	mm	mm	mm	mm	mm	mm	mm
1/2	21.30	95.20	15.70	14.20	52.30	21.30	38.10
3/4	26.70	11.73	20.80	15.70	57.15	26.70	47.70
1	33.40	12.39	26.70	17.50	62.00	33.50	53.80
1 1/4	42.20	13.33	35.10	19.00	65.00	42.20	63.50
1 1/2	48.30	15.54	40.90	20.60	68.30	48.30	69.85
2	60.30	16.51	52.60	22.30	69.85	60.45	84.00
2 1/2	73.00	19.05	62.70	25.40	76.20	73.15	100.00
3	88.90	209 .5	78.00	28.40	79.25	88.90	117.30
3 1/2	101.6	228.60	30.20	30.20	81.00	101.60	133.30
4	114.3	254.00	102.40	31.70	85.80	114.30	146.00
5	141.3	279.40	128.30	35.00	98.50	141.20	177.80
6	168.3	317.50	154.20	36.50	98.50	168.40	206.20
8	219.1	381.00	202.70	41.10	111.2	219.20	260.30
10	273.0	444.50	254.50	47.70	117.3	273.00	320.50
12	323.8	520.70	304.80	50.80	130.0	323.80	374.60
14	355.6	584.20	To be specified by purchaser	53.80	142.7	355.60	425.40
16	406.4	647.70		57.15	146.0	406.40	482.60

18	457.2	711.20		60.45	158.7	457.20	533.40
20	508.0	774.70		63.50	162.0	508.00	587.20
24	609.6	914.40		69.85	168.1	609.00	701.50

Pipe		Raised Face	Drilling Data			Weight
Nominal Pipe Size		G	H	I	J
	Outside Diameter	Face Diameter	Number of Holes	Bolt Hole Diameter	Diameter of Circles of Holes	kg/ pieces
	Outside Diameter	Face Diameter	Number of Holes	Bolt Hole Diameter	Diameter of Circles of Holes	kg/ pieces
	mm	mm		mm	mm
1/2	21.30	35.00	4	15.70	66.55	0.75
3/4	26.70	42.90	4	19.00	82.50	1.26
1	33.40	50.80	4	19.00	88.90	1.52
1 1/4	42.20	63.50	4	19.00	98.50	2.03
1 1/2	48.30	73.15	4	22.30	114.3	2.89
2	60.30	91.90	8	19.00	127.0	3.40
2 1/2	73.00	104.60	8	22.30	149.3	5.17
3	88.90	127.00	8	22.30	168.1	6.93
3 1/2	101.6	139.70	8	22.30	184.1	8.67
4	114.3	157.20	8	22.30	200.1	11.2
5	141.3	185.70	8	22.30	234.9	15.1
6	168.3	215.90	12	22.30	269.7	19.1
8	219.1	269.70	12	25.40	330.2	29.9
10	273.0	323.80	16	28.40	387.3	42.7
12	323.8	381.00	16	31.70	450.8	61.8
14	355.6	412.70	20	31.70	514.3	85.8
16	406.4	469.90	20	35.00	571.5	106
18	457.2	533.40	24	35.00	628.6	131
20	508.0	584.20	24	35.00	685.8	158
24	609.6	692.10	24	38.10	812.8	230

Class 1500 lb

Pipe		Flange Data				Hub Data
Nominal Pipe Size		A	B	C	D	E	F
	Outside Diameter	Overall Diameter	Inside Diameter	Flange Thickness min	Overall Length	Diameter at Weld Bevel	Hub Diameter
	Outside Diameter	Overall Diameter	Inside Diameter	Flange Thickness min	Overall Length	Diameter at Weld Bevel	Hub Diameter
	mm	mm	mm	mm	mm	mm	mm
1/2	21.30	95.20	15.70	14.20	52.30	21.30	38.10
3/4	26.70	11.73	20.80	15.70	57.15	26.70	47.70
1	33.40	12.39	26.70	17.50	62.00	33.50	53.80
1 1/4	42.20	13.33	35.10	19.00	65.00	42.20	63.50
1 1/2	48.30	15.54	40.90	20.60	68.30	48.30	69.85
2	60.30	16.51	52.60	22.30	69.85	60.45	84.00
2 1/2	73.00	19.05	62.70	25.40	76.20	73.15	100.00
3	88.90	209 .5	78.00	28.40	79.25	88.90	117.30
3 1/2	101.6	228.60	30.20	30.20	81.00	101.60	133.30
4	114.3	254.00	102.40	31.70	85.80	114.30	146.00
5	141.3	279.40	128.30	35.00	98.50	141.20	177.80
6	168.3	317.50	154.20	36.50	98.50	168.40	206.20
8	219.1	381.00	202.70	41.10	111.2	219.20	260.30
10	273.0	444.50	254.50	47.70	117.3	273.00	320.50
12	323.8	520.70	304.80	50.80	130.0	323.80	374.60
14	355.6	584.20	To be specified by purchaser	53.80	142.7	355.60	425.40
16	406.4	647.70		57.15	146.0	406.40	482.60
18	457.2	711.20		60.45	158.7	457.20	533.40
20	508.0	774.70		63.50	162.0	508.00	587.20
24	609.6	914.40		69.85	168.1	609.00	701.50

Pipe		Raised Face	Drilling Data			Weight
Nominal Pipe Size		G	H	I	J
	Outside Diameter	Face Diameter	Number of Holes	Bolt Hole Diameter	Diameter of Circles of Holes	kg/ pieces
	Outside Diameter	Face Diameter	Number of Holes	Bolt Hole Diameter	Diameter of Circles of Holes	kg/ pieces
	mm	mm		mm	mm
1/2	21.30	35.00	4	15.70	66.55	0.75
3/4	26.70	42.90	4	19.00	82.50	1.26
1	33.40	50.80	4	19.00	88.90	1.52
1 1/4	42.20	63.50	4	19.00	98.50	2.03
1 1/2	48.30	73.15	4	22.30	114.3	2.89
2	60.30	91.90	8	19.00	127.0	3.40
2 1/2	73.00	104.60	8	22.30	149.3	5.17
3	88.90	127.00	8	22.30	168.1	6.93
3 1/2	101.6	139.70	8	22.30	184.1	8.67
4	114.3	157.20	8	22.30	200.1	11.2
5	141.3	185.70	8	22.30	234.9	15.1
6	168.3	215.90	12	22.30	269.7	19.1
8	219.1	269.70	12	25.40	330.2	29.9
10	273.0	323.80	16	28.40	387.3	42.7
12	323.8	381.00	16	31.70	450.8	61.8
14	355.6	412.70	20	31.70	514.3	85.8
16	406.4	469.90	20	35.00	571.5	106
18	457.2	533.40	24	35.00	628.6	131
20	508.0	584.20	24	35.00	685.8	158
24	609.6	692.10	24	38.10	812.8	230

Class 2500 lb

Pipe		Flange Data				Weight
Nominal Pipe Size		A	B	C	D
	Outside Diameter	Overall Diameter	Inside Diameter	Flange Thickness min	Overall Length	kg/ pieces
	Outside Diameter	Overall Diameter	Inside Diameter	Flange Thickness min	Overall Length	kg/ pieces
	mm	mm	mm	mm	mm
1/2	21.30	133.4	To be specified by Purchaser	30.20	73.15	3.12
3/4	26.70	139.7		31.75	79.25	3.70
1	33.40	158.8		35.10	88.90	5.24
1 1/2	42.20	184.2		38.10	95.30	7.74
1 1/2	48.30	203.2		44.50	111.3	10.9
2	60.30	235.00		50.80	127.00	16.2
2 1/2	73.00	266.7		57.15	142.7	23.7
3	88.90	304.8		66.55	168.1	36.2
4	114.3	355.6		76.20	190.5	55.3
5	141.3	419.1		91.90	228.6	92.5
6	168.3	482.6		108.00	273.1	143
8	219.1	552.5		127.00	317	215
10	273	673.1		165.1	419.1	406
12	323.8	762.00		184.2	463.6	572

Pipe		Hub Data		Raise Face	Drilling Data
Nominal Pipe Size		E	F	G	H	I	J
	Outside Diameter	Diameter at Weld Bevel	Hub Diameter	Face Diameter	Number of Holes	Bolt Hole Diameter	Diameter of Circles of Holes
	Outside Diameter	Diameter at Weld Bevel	Hub Diameter	Face Diameter	Number of Holes	Bolt Hole Diameter	Diameter of Circles of Holes
	mm	mm	mm	mm		mm	mm
1/2	21.30	21.30	42.9	35.00	4	22.40	88.90
3/4	26.70	26.70	50.8	42.90	4	22.40	95.30
1	33.40	33.50	57.15	50.80	4	25.40	108.00
1 1/2	42.20	42.20	73.15	63.50	4	28.40	130.00
1 1/2	48.30	48.30	79.25	73.15	4	31.75	146.1
2	60.30	60.45	95.3	91.90	8	28.40	171.5
2 1/2	73.00	73.15	114.3	104.6	8	31.75	196.9
3	88.90	88.90	133.4	127.00	8	35.10	228.6
4	114.3	114.3	165.1	157.2	8	41.10	273.1
5	141.3	141.2	203.2	185.7	8	47.80	323.9
6	168.3	168.4	235	215.9	8	53.80	368.3
8	219.1	219.2	304.8	269.7	12	53.80	438.2
10	273	273.00	374.7	323.8	12	66.55	539.8
12	323.8	323.8	441.5	381.00	12	73.15	619.3

Notes: Class 150Ib - Class 300 Ib: Dimension B corresponds to the pipe inside diameter.

Values quoted assume 40S/Standard wallthickness.

Weights are based on manufacturer's data and approximate. Flat face flanges may be provided at full thickness, C, or with raised face removed (the latter is non-standard).

Class 600 Ib - Class 2500 Ib:

Dimension B corresponds to the pipe inside diameter. Vales quoted assume 40S/Standard wall thickness.

Weights are based on manufacturer's data and are approximate.

Wide range of raw-materials for flanges

Alloy Steel: ASTM A182 Fl I 1 % Cr Yz% Mo F5 F9 F91 ASTM A182 F22 2 % Cr 1% Mo F92 F911 ASTM A350 LF2 LF3 LF6 etc...

Carbon Steel: ASTM A l 05 A105N etc...

Stainless Steel: ASTM A182 F316 F316L F317 F321 ASTM A l 82 F304 F310 F904L F317L F347H

Duplex Steel: ASTM A182 F51 F53 F54 F55 F57 etc...

• Ratings from 300 lb to 2500 lb

• Sizes from 1" Nominal Bore

• Orifice flanges are intended for use instead of standard pipe flanges

• When an orifice plate or flow nozzle must be installed.

• Sure tappings are machined into the orifice flange, making separate

• Orifice carriers or tappings in the pipe wall is unnecessary.

MENU

Forged Flanges

PURCHASE
