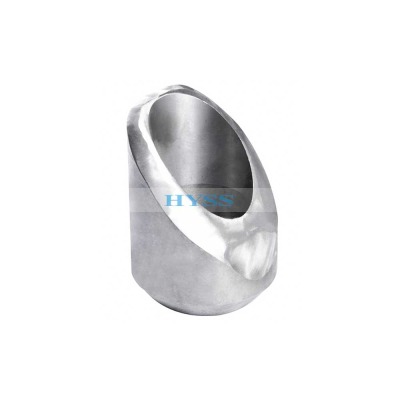

45° Forged Branch Outlet

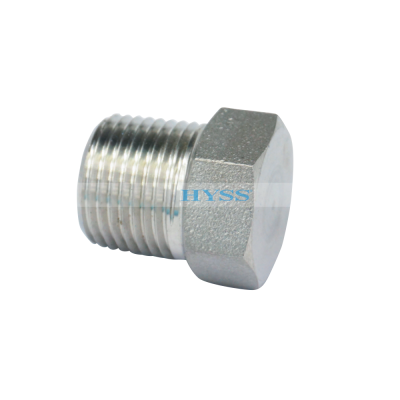

Forged Pipe Plug

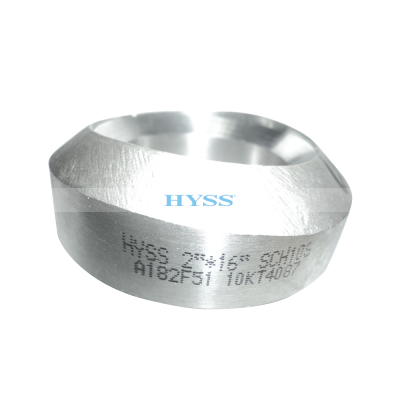

90° Forged Branch Outlet

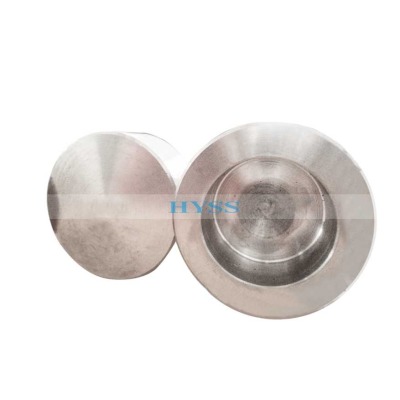

Forged Pipe Cap

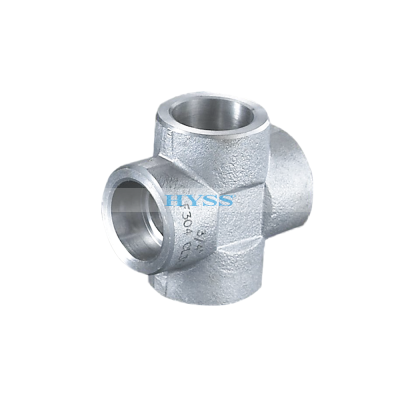

Forged Cross
Forged Tee
Forged Half-Coupling

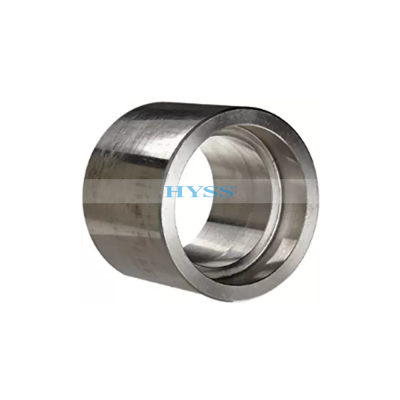

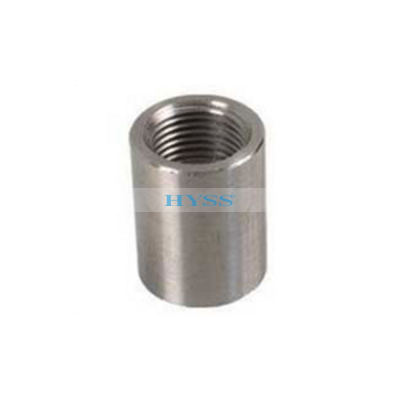

Forged Full-Coupling

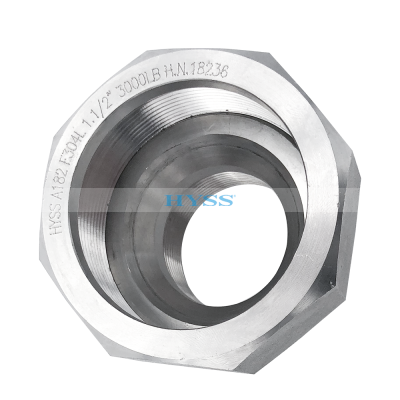

Forged Pipe Union

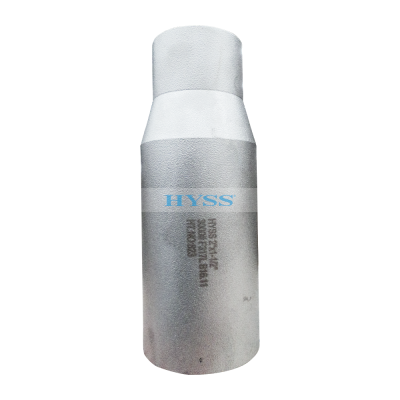

Swaged Nipple

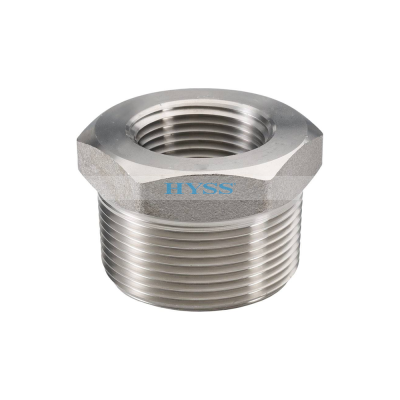

Pipe Bushing

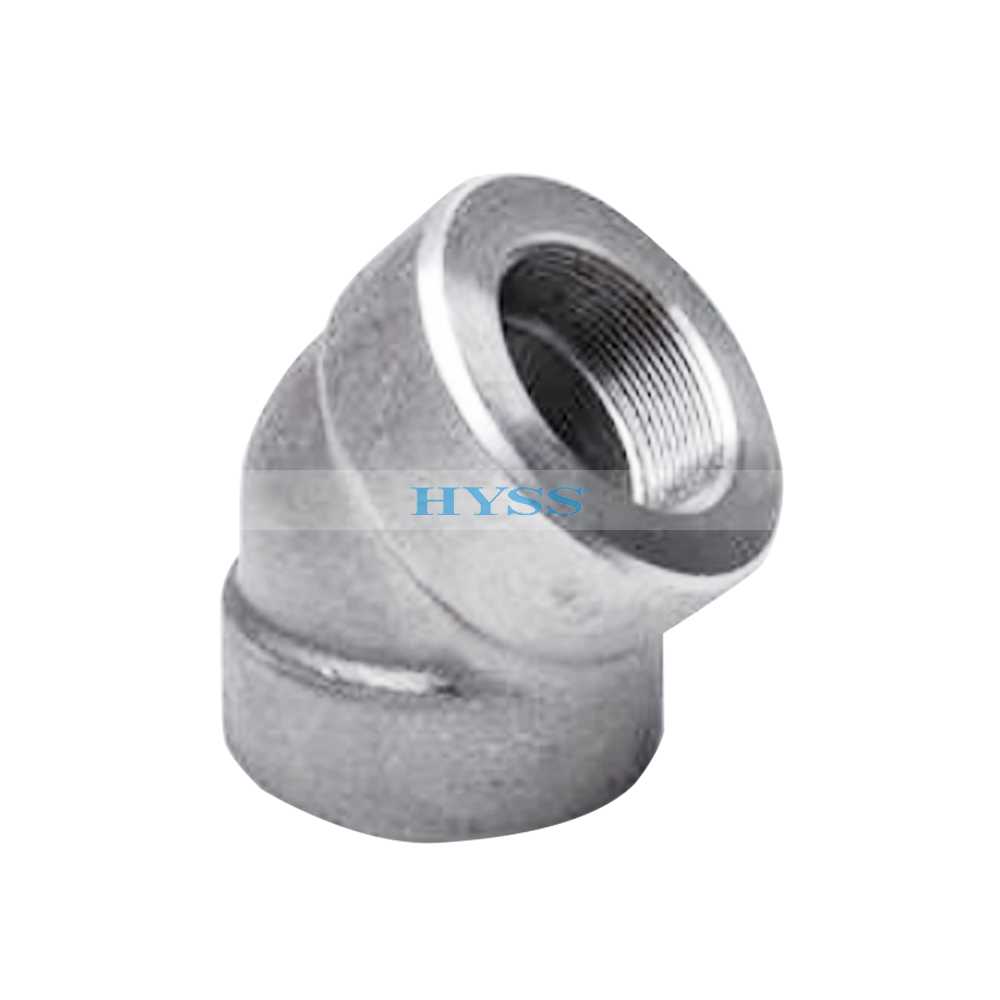

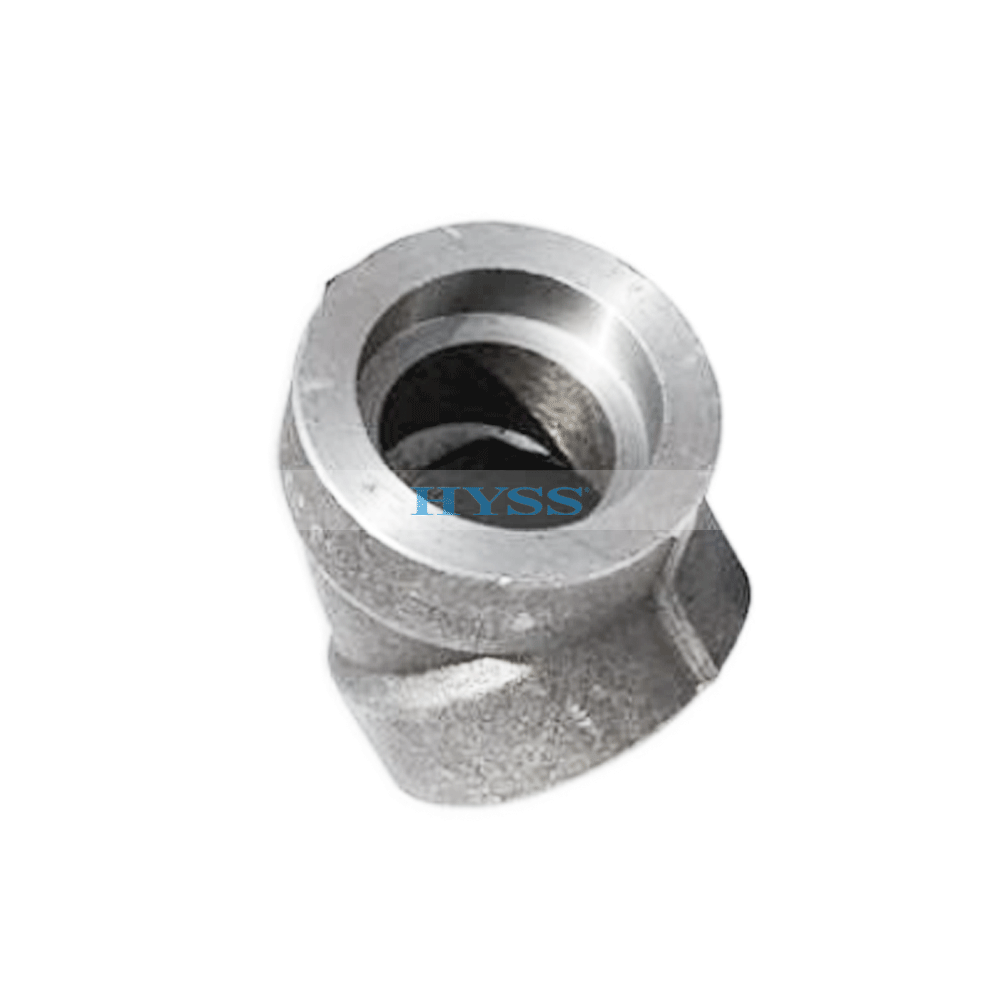

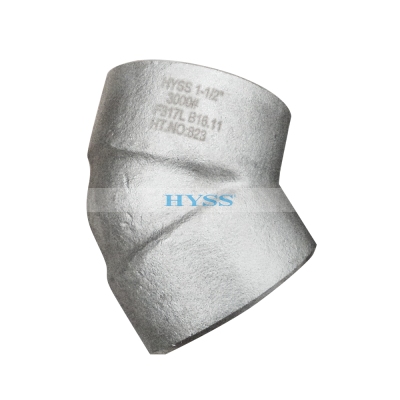

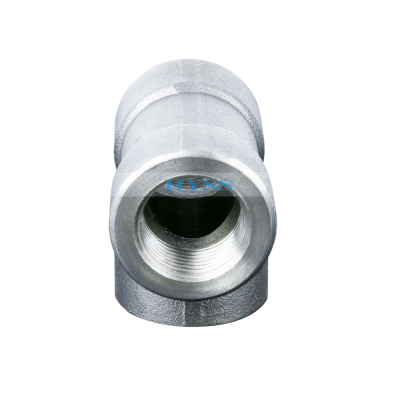

45° Forged Elbow
Type:
Threaded End 2000LB, 3000LB, 6000LB (NPT, BSP)
Socket Welded End 3000LB, 6000LB, 9000LB
NPS: 1/4" to 4"
Standard: ASME B16.11
Material Range:
Stainless Steel: ASTM A182 F304/ F304L/ F316/ 316L/ F321/ F347/ F904L/ F20/ F70, etc.
Duplex Steel: ASTM A182 F51/ F53/ F55/ F60, etc.
Carbon Steel: ASTM A105, ASTM A350 LF2/ LF3/ LF6, etc.
Alloy Steel: ASTM A182 F1/ F5/ F9/ F11/ F22/ F91, A694 F42/ F46/ F48/ F50/ F52/ F56/ F60/ F65/ F70, etc.
Special Nickel Alloy Steel: ASTM B564 UNS N08367, N06035, N06200, N06686, N08031, N04400, N10276, N02200, N12160, N06617, N06600, N06025, N06625, N08800, N08811, N08825, N10665, N10675, N10242
Package: Wooden box, Plywood box
Picures:
Dimensions as below:
| DN | NOM. PIPE SIZE (mm) | Socket Bore Dia.(2) B (mm) | Bore Diameter of Fitting (2)D (mm) | Body Wall Thickness G (mm) | ||||
| Class Designation | Class Designation | |||||||
| 3000 | 6000 | 9000 | ||||||
| 3000 | 6000 | 9000 | Min. | Min. | Min. | |||
| 6 | 1/8 | 11.2 10.8 | 7.6 6.1 | 4.8 3.2 | ... | 2.41 | 3.15 | ... |
| 8 | 1/4 | 14.6 14.2 | 10 8.5 | 7.1 5.6 | ... | 3.02 | 3.68 | ... |
| 10 | 3/8 | 18.0 17.6 | 13.3 11.8 | 9.9 8.4 | ... | 3.2 | 4.01 | ... |
| 15 | 1/2 | 22.0 21.8 | 16.6 15 | 12.5 11 | 7.2 5.6 | 3.73 | 4.78 | 7.47 |
| 20 | 3/4" | 27.6 27.2 | 21.7 20.2 | 16.3 14.8 | 11.8 10.3 | 3.91 | 5.56 | 7.82 |
| 25 | 1 | 34.3 33.9 | 27.4 25.9 | 21.5 19.9 | 16.0 14.4 | 4.55 | 6.35 | 9.09 |
| 32 | 1 1/4 | 43.1 42.7 | 35.8 34.3 | 30.2 28.7 | 23.5 22 | 4.85 | 6.35 | 9.7 |
| 40 | 1 1/2 | 49.2 48.8 | 41.6 40.1 | 34.7 33.2 | 28.7 27.2 | 5.08 | 7.14 | 10.15 |
| 50 | 2 | 61.7 61.2 | 53.3 51.7 | 43.6 42.1 | 38.9 37.4 | 5.54 | 8.74 | 11.07 |
| 65 | 2 1/2 | 74.4 73.9 | 64.2 61.2 | ... | ... | 7.01 | ... | ... |
| 80 | 3 | 90.3 89.8 | 79.4 76.4 | ... | ... | 7.62 | ... | ... |
| 100 | 4 | 115.7 115.2 | 103.8 100.7 | ... | ... | 8.56 | ... | ... |
| DN | NOM. PIPE SIZE (mm) | Socket Bore Dia.(2) B (mm) | Socket Wall Thickness(1) C (mm) | |||||
| Class Designation | ||||||||
| 3000 | 6000 | 9000 | ||||||
| Avg. | Min. | Avg. | Min. | Avg. | Min. | |||
| 6 | 1/8 | 11.2 10.8 | 3.18 | 3.18 | 3.96 | 3.43 | ... | ... |
| 8 | 1/4 | 14.6 14.2 | 3.78 | 3.3 | 4.6 | 4.01 | ... | ... |
| 10 | 3/8 | 18.0 17.6 | 4.01 | 3.5 | 5.03 | 4.37 | ... | ... |
| 15 | 1/2 | 22.0 21.8 | 4.67 | 4.09 | 5.97 | 5.18 | 9.35 | 8.18 |
| 20 | 3/4" | 27.6 27.2 | 4.9 | 4.27 | 6.96 | 6.04 | 9.78 | 8.56 |
| 25 | 1 | 34.3 33.9 | 5.69 | 4.98 | 7.92 | 6.93 | 11.38 | 9.96 |
| 32 | 1 1/4 | 43.1 42.7 | 6.07 | 5.28 | 7.92 | 6.93 | 12.14 | 10.62 |
| 40 | 1 1/2 | 49.2 48.8 | 6.35 | 5.54 | 8.92 | 7.8 | 12.7 | 11.12 |
| 50 | 2 | 61.7 61.2 | 6.93 | 6.04 | 10.92 | 9.5 | 13.84 | 12.12 |
| 65 | 2 1/2 | 74.4 73.9 | 8.76 | 7.67 | ... | ... | ... | ... |
| 80 | 3 | 90.3 89.8 | 9.52 | 8.3 | ... | ... | ... | ... |
| 100 | 4 | 115.7 115.2 | 10.69 | 9.35 | ... | ... | ... | ... |
| DN | NOM. PIPE SIZE (mm) | Socket Bore Dia.(2) B (mm) | Body Wall Thickness G (mm) | Center to Bottom of Scoket-A (mm) | Depth of Socket Min. J (mm) | ||||
| Class Designation | Class Designation | ||||||||
| 3000 | 6000 | 9000 | 3000 | 6000 | 9000 | ||||
| Min. | Min. | Min. | |||||||
| 6 | 1/8 | 11.2 10.8 | 2.41 | 3.15 | ... | 8 | 8 | ... | 9.5 |
| 8 | 1/4 | 14.6 14.2 | 3.02 | 3.68 | ... | 8 | 8 | ... | 9.5 |
| 10 | 3/8 | 18.0 17.6 | 3.2 | 4.01 | ... | 8 | 11 | ... | 9.5 |
| 15 | 1/2 | 22.0 21.8 | 3.73 | 4.78 | 7.47 | 11 | 12.5 | 15.5 | 9.5 |
| 20 | 3/4" | 27.6 27.2 | 3.91 | 5.56 | 7.82 | 13 | 14 | 19 | 12.5 |
| 25 | 1 | 34.3 33.9 | 4.55 | 6.35 | 9.09 | 14 | 17.5 | 20.5 | 12.5 |
| 32 | 1 1/4 | 43.1 42.7 | 4.85 | 6.35 | 9.7 | 17.5 | 20.5 | 22.5 | 12.5 |
| 40 | 1 1/2 | 49.2 48.8 | 5.08 | 7.14 | 10.15 | 20.5 | 25.5 | 25.5 | 12.5 |
| 50 | 2 | 61.7 61.2 | 5.54 | 8.74 | 11.07 | 25.5 | 28.5 | 28.5 | 16 |
| 65 | 2 1/2 | 74.4 73.9 | 7.01 | ... | ... | 28.5 | ... | ... | 16 |
| 80 | 3 | 90.3 89.8 | 7.62 | ... | ... | 32 | ... | ... | 16 |
| 100 | 4 | 115.7 115.2 | 8.56 | ... | ... | 41 | ... | ... | 19 |
| DN | NOM. PIPE SIZE (mm) | Center to End,C (mm) | Outside Diameter of Band,H (mm) | ||||
| 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | ||
| 6 | 1/8 | 17 | 17 | 19 | 22 | 22 | 25 |
| 8 | 1/4 | 17 | 19 | 22 | 22 | 25 | 33 |
| 10 | 3/8 | 19 | 22 | 25 | 25 | 33 | 38 |
| 15 | 1/2 | 22 | 25 | 28 | 33 | 38 | 46 |
| 20 | 3/4 | 25 | 28 | 33 | 38 | 46 | 56 |
| 25 | 1 | 28 | 33 | 35 | 46 | 56 | 62 |
| 32 | 1.1/4 | 33 | 35 | 43 | 56 | 62 | 75 |
| 40 | 1.1/2 | 35 | 43 | 44 | 62 | 75 | 84 |
| 50 | 2 | 43 | 44 | 52 | 75 | 84 | 102 |
| 65 | 2.1/2 | 52 | 52 | 64 | 92 | 102 | 121 |
| 80 | 3 | 64 | 64 | 79 | 109 | 121 | 146 |
| 100 | 4 | 79 | 79 | 79 | 146 | 152 | 152 |
| DN | NOM. PIPE SIZE (mm) | Minimum Wall Thickness,G (mm) | Length of Threas Min. (mm) | |||
| 2000 | 3000 | 6000 | B | L2 | ||
| 6 | 1/8 | 3.18 | 3.18 | 6.35 | 6.4 | 6.7 |
| 8 | 1/4 | 3.18 | 3.3 | 6.6 | 8.1 | 10.2 |
| 10 | 3/8 | 3.18 | 3.51 | 6.98 | 9.1 | 10.4 |
| 15 | 1/2 | 3.18 | 4.09 | 8.15 | 10.9 | 13.6 |
| 20 | 3/4 | 3.18 | 4.32 | 8.53 | 12.7 | 13.9 |
| 25 | 1 | 3.68 | 4.98 | 9.93 | 14.7 | 17.3 |
| 32 | 1.1/4 | 3.89 | 5.28 | 10.59 | 17 | 18 |
| 40 | 1.1/2 | 4.01 | 5.56 | 11.07 | 17.8 | 18.4 |
| 50 | 2 | 4.27 | 7.14 | 12.09 | 19 | 19.2 |
| 65 | 2.1/2 | 5.61 | 7.65 | 15.29 | 23.6 | 28.9 |
| 80 | 3 | 5.99 | 8.84 | 16.64 | 25.9 | 30.5 |
| 100 | 4 | 6.55 | 11.18 | 18.67 | 27.7 | 33 |
